Here you will find all available parts and drawings of the 'Bosch 3600H49G00 (AHS55-20LI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

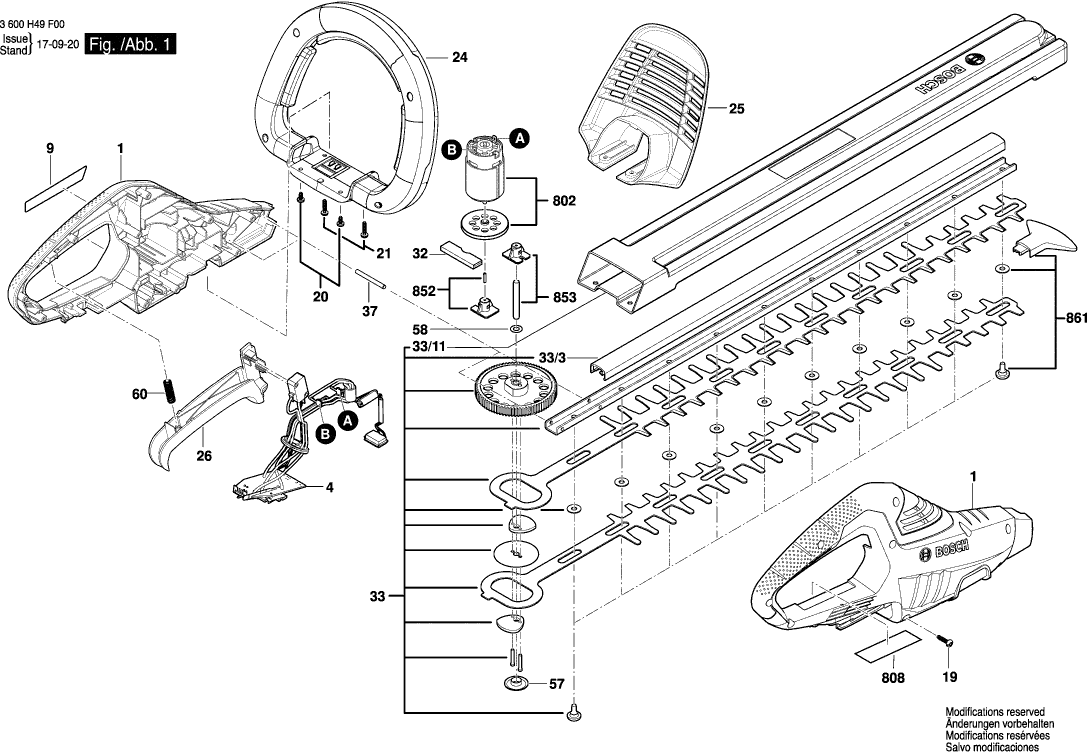

Technical drawing of model Bosch 3600H49G00 (AHS55-20LI)
Spare parts list of model Bosch 3600H49G00 (AHS55-20LI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 16051082B4 | 18.94 | 22.92 | |
| Electronic Module | ||||
| 4 | 1600A004PZ | 55.56 | 67.23 | |
| Manufacturer's nameplate AHS 55-20 LI | ||||
| 9 | 160111C0KS | 2.40 | 2.90 | |
| Manufacturer's nameplate AHS 53-20 LI | ||||
| 9 | 160111C0KT | 2.40 | 2.90 | |
| Manufacturer's nameplate UniversalHedgeCut 18-500 | ||||
| 9 | 160111C1MW | 2.40 | 2.90 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 20 | 160343001Y | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 21 | 1603435088 | 1.00 | 1.21 | |
| Handle | ||||
| 24 | 160513215R | 27.81 | 33.65 | |
| Guard Segment | ||||
| 25 | 1600A004SK | 2.86 | 3.46 | |
| Switch Segment | ||||
| 26 | 2609006153 | 2.08 | 2.52 | |
| Support | ||||
| 32 | 1600A00750 | 1.49 | 1.80 | |
| Blade | ||||
| 33 | 1600A004R2 | 88.83 | 107.48 | |
| Knife Guard | ||||
| 33/11 | 2609005512 | 12.82 | 15.51 | |
| Cover | ||||
| 33/3 | 16055002A6 | 6.73 | 8.14 | |
| Straight Pin | ||||
| 37 | 2609002714 | 1.49 | 1.80 | |
| Spacer Tube | ||||
| 57 | 2609006721 | 1.00 | 1.21 | |
| Shim | ||||
| 58 | 2600100040 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 60 | 2604610028 | 1.49 | 1.80 | |
| Battery Pack | ||||
| 91 | 2607337211 | 88.83 | 107.48 | |
| Battery Pack | ||||
| 91 | 1607A350RU | 88.83 | 107.48 | |
| Battery Pack | ||||
| 91 | 1607A351C3 | 52.45 | 63.46 | |
| Battery Pack | ||||
| 91 | 1607A351C9 | 52.45 | 63.46 | |
| Charger | ||||
| 653 | 2607225967 | 80.26 | 97.11 | |
| Charger | ||||
| 653 | 2607225969 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 653 | 2607225965 | 52.45 | 63.46 | |
| Charger | ||||
| 653 | 2607226705 | 39.14 | 47.36 | |
| Charger | ||||
| 653 | 2607226517 | 31.42 | 38.02 | |
| DC motor | ||||
| 802 | 160702265X | 26.62 | 32.21 | |
| Nameplate | ||||
| 808 | 160111A3VZ | 2.40 | 2.90 | |
| Support Pin | ||||
| 852 | 2609006400 | 8.35 | 10.10 | |
| Axle | ||||
| 853 | 2609006401 | 9.67 | 11.70 | |
| Protector | ||||
| 861 | 1607000C6R | 4.94 | 5.98 | |
