Here you will find all available parts and drawings of the 'Bosch 0600845103 ( AHS48-24 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

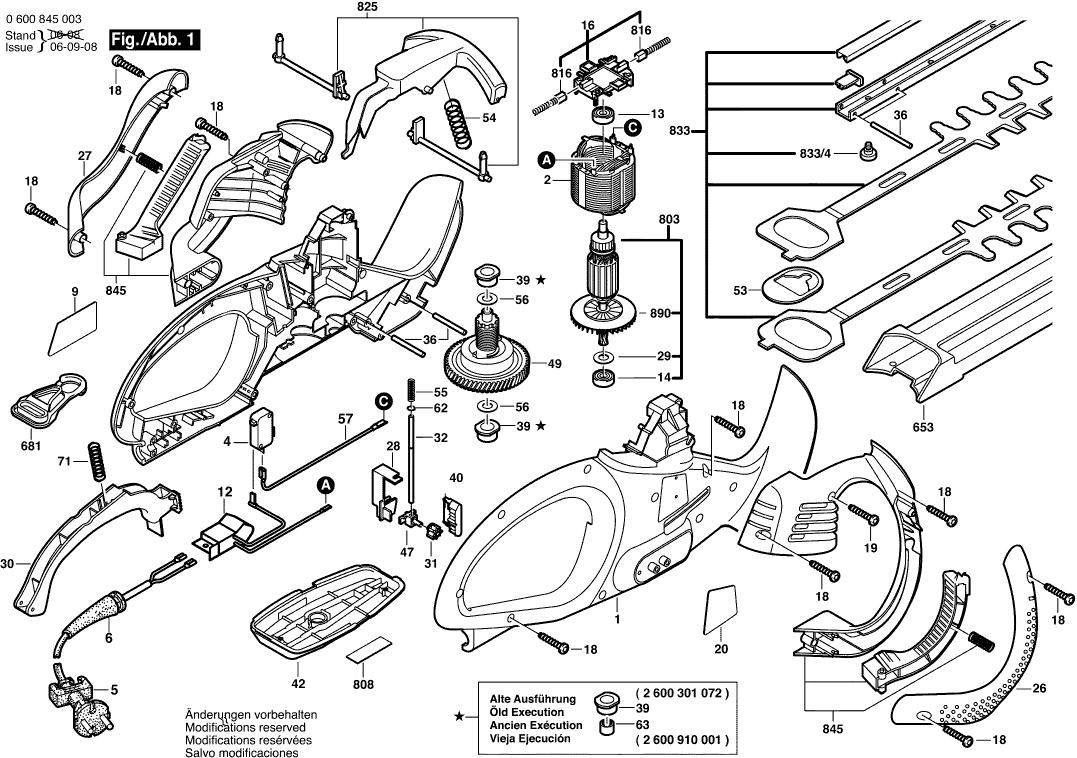

Technical drawing of model Bosch 0600845103 ( AHS48-24 )
Spare parts list of model Bosch 0600845103 ( AHS48-24 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section TURQUOISE | ||||
| 1 | 2609002758 | 33.45 | 40.47 | |
| No longer available, no replacement | ||||
| 2 | 2604220594 | |||
| No longer available, no replacement | ||||
| 4 | 2607200446 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Manufacturer's nameplate | ||||
| 9 | 2601117475 | 2.71 | 3.28 | |
| Interference Suppr.Choke | ||||
| 12 | 2609003984 | 6.54 | 7.91 | |
| Flanged Bearing | ||||
| 13 | 2605805004 | 6.54 | 7.91 | |
| groove ball bearing 9x24x7 | ||||
| 14 | 2600905021 | 6.54 | 7.91 | |
| Brush Plate | ||||
| 16 | 1600A012AZ | 8.45 | 10.22 | |
| Torx Oval-Head Screw 4x20 | ||||
| 18 | 2603490023 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x25 | ||||
| 19 | 2603490024 | 1.18 | 1.43 | |
| Reference Plate | ||||
| 20 | 2601116119 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 21 | 2604465109 | |||
| Fixing Element | ||||
| 26 | 2609005342 | 3.31 | 4.01 | |
| Fixing Element | ||||
| 27 | 2609005343 | 4.70 | 5.69 | |
| Support | ||||
| 28 | 2608040167 | 3.31 | 4.01 | |
| Spacer Ring | ||||
| 29 | 2600209003 | 1.70 | 2.06 | |
| Switch Segment | ||||
| 30 | 2609003055 | 2.24 | 2.71 | |
| Switch Wheel | ||||
| 31 | 2606319105 | 0.83 | 1.00 | |
| Coupling | ||||
| 32 | 2609004249 | 1.70 | 2.06 | |
| Straight Pin | ||||
| 36 | 2609002714 | 1.18 | 1.43 | |
| Bushing | ||||
| 39 | 2600301073 | 2.71 | 3.28 | |
| Shifter Rod | ||||
| 40 | 2608040163 | 1.18 | 1.43 | |
| Gear Cover | ||||
| 42 | 2605808086 | 6.54 | 7.91 | |
| Control Element | ||||
| 47 | 2606314102 | 1.94 | 2.35 | |
| Sliding Clutch | ||||
| 49 | 2606440028 | 49.56 | 59.97 | |
| Spacer | ||||
| 53 | 2608040183 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 54 | 2604610045 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 55 | 2604610073 | |||
| Shim 0,3 MM | ||||
| 56 | 2600101617 | 1.18 | 1.43 | |
| Connecting Cable | ||||
| 57 | 2604448234 | 1.70 | 2.06 | |
| Connecting Cable | ||||
| 60 | 2604448235 | 1.70 | 2.06 | |
| Locking washer | ||||
| 62 | 2916080905 | 0.83 | 1.00 | |
| Clamping Strip | ||||
| 66 | 2604490012 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 71 | 2604610074 | 0.83 | 1.00 | |
| Knife Guard | ||||
| 653 | 2605411154 | 10.73 | 12.98 | |
| Strain-Relief Clamp | ||||
| 681 | 3601398000 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 803 | 2604010982 | |||
| Marking Plate | ||||
| 808 | 2601117843 | 2.71 | 3.28 | |
| Carbon-Brush Set | ||||
| 816 | 2604321925 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 825 | 2608001903 | |||
| Set of knives | ||||
| 833 | 2607001903 | 49.56 | 59.97 | |
| No longer available, no replacement | ||||
| 833/4 | 2603413026 | |||
| Switch Segment | ||||
| 845 | 2608001900 | 23.75 | 28.74 | |
| Fan | ||||
| 890 | 2606610093 | 2.24 | 2.71 | |
