Here you will find all available parts and drawings of the 'Bosch 0600816003 ( AHR120 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

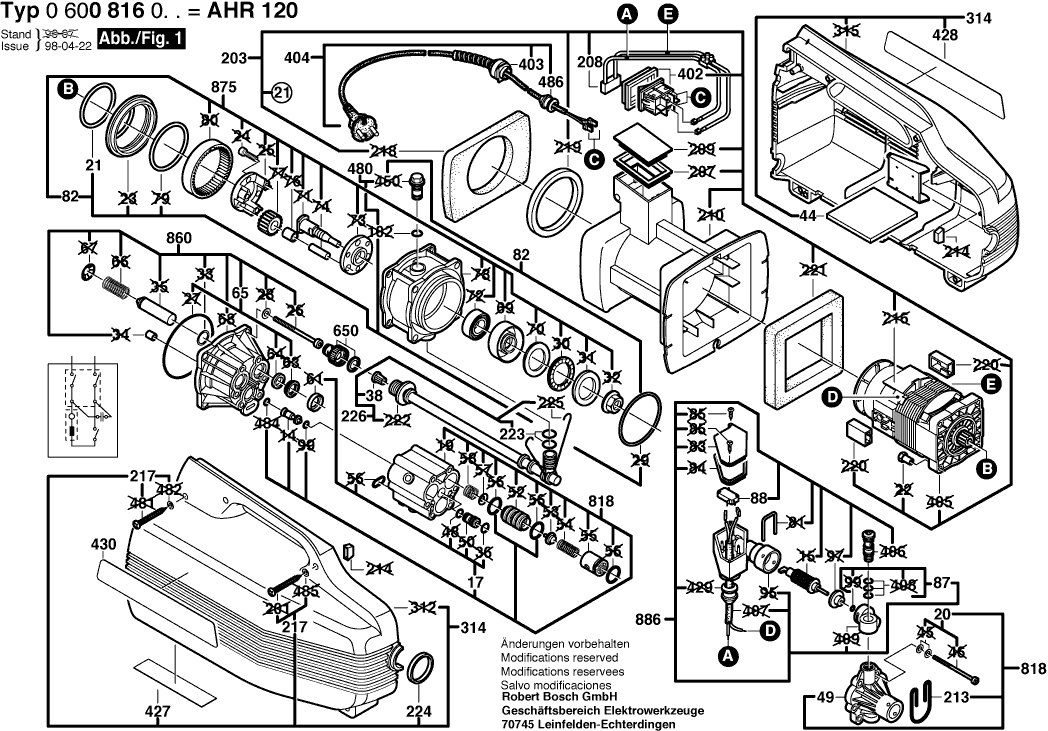

Technical drawing of model Bosch 0600816003 ( AHR120 )
Spare parts list of model Bosch 0600816003 ( AHR120 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Parts Set | ||||
| 17 | 1609350468 | 10.73 | 12.98 | |
| Parts Set | ||||
| 20 | 1609350466 | 5.33 | 6.45 | |
| O-Ring 53,7x1,78 MM | ||||
| 21 | 1609350471 | 1.18 | 1.43 | |
| Filter | ||||
| 38 | 1609350476 | 1.18 | 1.43 | |
| Felt Sheet | ||||
| 44 | 1609350507 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 49 | 1609350467 | |||
| Seal Kit | ||||
| 65 | 1609350470 | 9.53 | 11.53 | |
| Parts Set | ||||
| 82 | 1609350474 | 6.54 | 7.91 | |
| Seal Kit | ||||
| 87 | 1609350478 | 1.94 | 2.35 | |
| Microswitch | ||||
| 88 | 1609350479 | 5.33 | 6.45 | |
| Motor 230V | ||||
| 203 | 1609350458 | 168.86 | 204.32 | |
| Suppression Filter | ||||
| 208 | 1609350505 | 2.71 | 3.28 | |
| Clip | ||||
| 213 | 1609350469 | 3.31 | 4.01 | |
| Special Screw | ||||
| 217 | 1609350502 | 3.31 | 4.01 | |
| O-Ring 10x2 MM | ||||
| 223 | 1609350477 | 1.18 | 1.43 | |
| Ring | ||||
| 224 | 1609350465 | 1.18 | 1.43 | |
| Suction Pipe | ||||
| 226 | 1609350475 | 7.58 | 9.17 | |
| Housing GREEN | ||||
| 314 | 1609350459 | 36.85 | 44.59 | |
| On-Off Switch | ||||
| 402 | 1609350501 | 5.83 | 7.05 | |
| Grommet | ||||
| 403 | 1609350473 | 2.24 | 2.71 | |
| Power supply cord | ||||
| 404 | 1609350506 | 33.45 | 40.47 | |
| Nameplate | ||||
| 427 | 1601118593 | 2.71 | 3.28 | |
| Sticker | ||||
| 428 | 1601118598 | 2.71 | 3.28 | |
| Sticker | ||||
| 430 | 1601118599 | 2.71 | 3.28 | |
| Lock | ||||
| 480 | 1609350503 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 650 | 0600802001 | |||
| O-Ring 11x2,5 MM | ||||
| 650/10 | 1609351000 | 1.18 | 1.43 | |
| Gasket Ø15xØ24x4,5=3/4" | ||||
| 650/20 | 1609351029 | 0.83 | 1.00 | |
| spray gun | ||||
| 652 | 1609350449 | 33.45 | 40.47 | |
| Special Screw | ||||
| 652/89 | 1609350480 | 4.10 | 4.96 | |
| Handle Cover | ||||
| 652/90 | 1609350481 | 13.93 | 16.86 | |
| Compression Spring | ||||
| 652/91 | 1609350482 | 2.24 | 2.71 | |
| Parts Set | ||||
| 652/92 | 1609350483 | 4.10 | 4.96 | |
| Push-Button | ||||
| 652/93 | 1609350484 | 7.58 | 9.17 | |
| Molded Part | ||||
| 652/94 | 1609350485 | 1.18 | 1.43 | |
| Molded Part | ||||
| 652/96 | 1609350486 | 6.54 | 7.91 | |
| Jet Pipe | ||||
| 653 | 1609350450 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 653/415 | 1609203577 | |||
| Extension Tube | ||||
| 654 | 1609350451 | 20.42 | 24.71 | |
| Parts Set | ||||
| 654/414 | 1609350491 | 1.94 | 2.35 | |
| High-Pressure Hose | ||||
| 655 | 1609350452 | 49.56 | 59.97 | |
| O-Ring 8,9x2,7 MM | ||||
| 655/412 | 1609350487 | 1.18 | 1.43 | |
| Nozzle | ||||
| 656 | F016102474 | 33.45 | 40.47 | |
| No longer available, no replacement | ||||
| 656/415 | 1609203577 | |||
| Container | ||||
| 656/419 | 1609350492 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 701 | 2609200294 | |||
| No longer available, no replacement | ||||
| 701/415 | 1609203577 | |||
| No longer available, no replacement | ||||
| 702 | 1609350053 | |||
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 702/80 | 1609350078 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 703 | 1609350156 | |||
| Gasket Ø15xØ24x3=3/4" | ||||
| 703/20 | 1609351002 | 1.94 | 2.35 | |
| Adapter | ||||
| 703/30 | 1609350159 | 5.83 | 7.05 | |
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 703/40 | 1609350078 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 704 | 1609350126 | |||
| Gasket Ø15xØ24x3=3/4" | ||||
| 704/20 | 1609351002 | 1.94 | 2.35 | |
| Connecting Piece | ||||
| 704/30 | 1609351014 | 15.71 | 19.01 | |
| Adapter | ||||
| 704/40 | 1609350159 | 5.83 | 7.05 | |
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 704/50 | 1609350078 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 705 | 1609350054 | |||
| No longer available, no replacement | ||||
| 705/1 | 1609350055 | |||
| Pipe Nozzle | ||||
| 705/10 | 1609350137 | 49.56 | 59.97 | |
| Parts Set Ø1,6xØ10 MM 3 PIECE | ||||
| 705/20 | 1609350088 | 1.18 | 1.43 | |
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 705/60 | 1609350078 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 706 | 2609200277 | |||
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 706/60 | 1609350078 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 707 | 1609350057 | |||
| Nozzle retaining nut | ||||
| 707/10 | 1609350136 | 2.24 | 2.71 | |
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 707/60 | 1609350078 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 708 | 1609350119 | |||
| Clamp Screw | ||||
| 708/10 | 1609350120 | 10.73 | 12.98 | |
| Clamping Piece | ||||
| 708/20 | 1609350121 | 7.58 | 9.17 | |
| Wheel | ||||
| 708/30 | 1609350122 | 11.88 | 14.37 | |
| Sealing cap | ||||
| 708/40 | 1609350123 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 709 | 2607000191 | |||
| Nozzle-Holder Assembly | ||||
| 709/10 | 1609350146 | 7.58 | 9.17 | |
| Suction Connection Piece | ||||
| 709/11 | 1609350135 | 36.85 | 44.59 | |
| Connecting Tube | ||||
| 709/12 | 1609350303 | 33.45 | 40.47 | |
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 709/13 | 1609350078 | 7.58 | 9.17 | |
| Oval-Head Screw DIN 7985-M4x20-8.8-Z | ||||
| 709/20 | 2912311130 | 11.88 | 14.37 | |
| Hex Nut DIN 934 -M4-m-8 | ||||
| 709/30 | 2915011005 | 0.83 | 1.00 | |
| Tapping Screw DIN7981-ST2,9x9,5C-Z | ||||
| 709/40 | 2912401005 | 0.83 | 1.00 | |
| Nozzle | ||||
| 709/50 | 1609350134 | 18.19 | 22.01 | |
| Parts Set Ø2xØ11 MM 3 PIECE | ||||
| 709/60 | 1609350074 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 714 | 1609350155 | |||
| No longer available, no replacement | ||||
| 716 | 1609350162 | |||
| No longer available, no replacement | ||||
| 717 | 1609350164 | |||
| Parts Set Ø2,4xØ9,6 MM 3 PIECE | ||||
| 717/60 | 1609350078 | 7.58 | 9.17 | |
| Adapter | ||||
| 730 | 2609200295 | 0.83 | 1.00 | |
| Lubricating Oil 70 ML | ||||
| 813 | 1609350493 | 9.53 | 11.53 | |
| Cylinder Head | ||||
| 818 | 1609350454 | 81.47 | 98.58 | |
| Cylinder Block | ||||
| 860 | 1609350455 | 67.25 | 81.37 | |
| Gear | ||||
| 875 | 1609350456 | 91.56 | 110.79 | |
| Pressure Switch | ||||
| 886 | 1609350457 | 15.71 | 19.01 | |
