Here you will find all available parts and drawings of the 'Bosch 0600807003 (AHR1100AS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

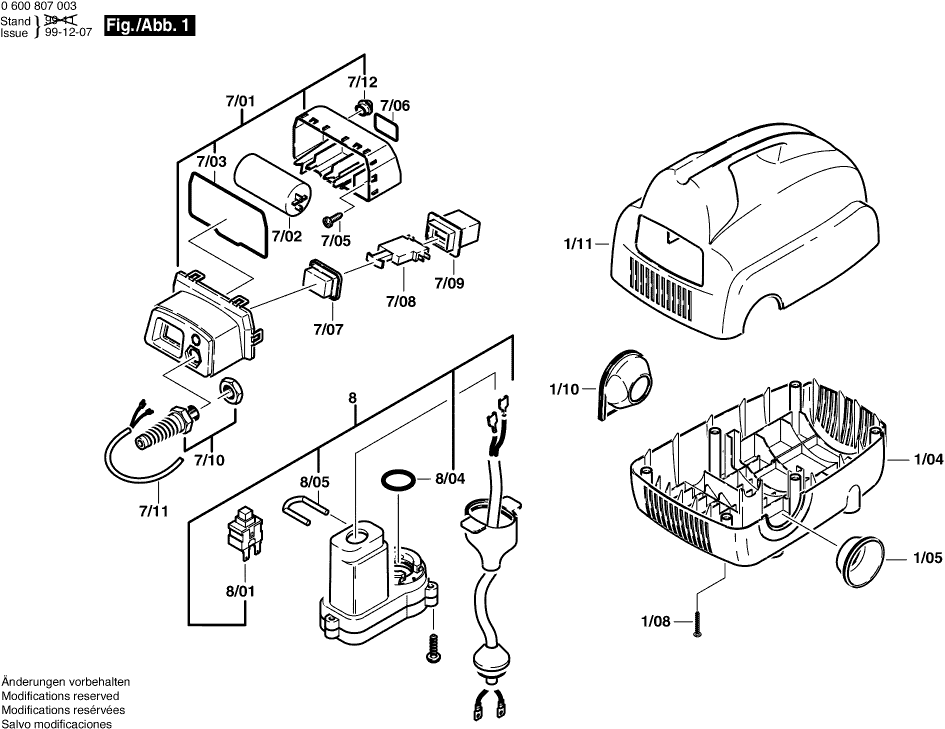

Technical drawing of model Bosch 0600807003 (AHR1100AS)
Spare parts list of model Bosch 0600807003 (AHR1100AS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover | ||||
| 1/04 | F016102490 | 31.42 | 38.02 | |
| Insert | ||||
| 1/05 | F016102485 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 1/08 | F016102401 | |||
| Insert | ||||
| 1/10 | F016102489 | 6.73 | 8.14 | |
| Cover | ||||
| 1/11 | F016102496 | 43.12 | 52.18 | |
| Plug | ||||
| 2/01 | F016102427 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 2/02 | F016102428 | |||
| No longer available, no replacement | ||||
| 2/03 | F016102429 | |||
| O-Ring 70,0x2,5 MM | ||||
| 2/04 | F016102511 | 3.44 | 4.16 | |
| Bushing | ||||
| 2/05 | F016102430 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 2/06 | F016102431 | |||
| Washer | ||||
| 2/07 | F016102483 | 10.90 | 13.19 | |
| Grooved Ring | ||||
| 2/08 | F016102407 | 4.94 | 5.98 | |
| Cylinder Head | ||||
| 2/09 | F016102432 | 52.45 | 63.46 | |
| Socket head cap screw M8x50 MM | ||||
| 2/10 | F016102443 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 3/03 | F016102421 | |||
| Guide Piece | ||||
| 3/04 | F016102422 | 47.53 | 57.51 | |
| Compression Spring | ||||
| 3/05 | F016102423 | 5.81 | 7.03 | |
| Piston | ||||
| 3/06 | F016102424 | 23.90 | 28.92 | |
| Grooved Ring | ||||
| 3/08 | F016102425 | 8.35 | 10.10 | |
| Valve Seat | ||||
| 3/09 | F016102703 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 3/10 | F016102454 | |||
| O-Ring | ||||
| 3/11 | F016102435 | 2.86 | 3.46 | |
| Strainer | ||||
| 3/12 | F016102411 | 3.44 | 4.16 | |
| Clutch | ||||
| 3/14 | F016102436 | 10.90 | 13.19 | |
| Threaded Connection 3/4" | ||||
| 3/15 | F016102409 | 10.90 | 13.19 | |
| Clip 17,12x2,62 MM | ||||
| 3/17 | F016102441 | 2.40 | 2.90 | |
| O-Ring 17,12x2,62 MM | ||||
| 3/18 | F016102403 | 2.86 | 3.46 | |
| O-Ring 10,78x2,62 MM | ||||
| 3/19 | F016102414 | 2.86 | 3.46 | |
| Motor | ||||
| 4/01 | F016102648 | 197.62 | 239.12 | |
| Screw 48x45 MM | ||||
| 4/02 | F016102434 | 1.49 | 1.80 | |
| Fan Wheel | ||||
| 4/03 | F016102433 | 11.37 | 13.76 | |
| Plate | ||||
| 4/04 | F016102645 | 27.81 | 33.65 | |
| Ball Bearing 17x47x14 MM | ||||
| 4/05 | F016102527 | 16.79 | 20.32 | |
| Socket head cap screw M6x20-Z9 | ||||
| 4/06 | F016102402 | 2.86 | 3.46 | |
| Self-Cutting Screw M4x10 MM | ||||
| 4/07 | F016102400 | 1.49 | 1.80 | |
| Fan Housing | ||||
| 4/09 | F016102437 | 12.82 | 15.51 | |
| Fat Oil 50 ML | ||||
| 4/10 | F016102438 | 11.37 | 13.76 | |
| Ball Bearing 6202-2RS | ||||
| 4/13 | F016102446 | 12.82 | 15.51 | |
| End Shield | ||||
| 4/14 | F016102439 | 39.14 | 47.36 | |
| Shaft Seal 22x35x5MM | ||||
| 4/15 | F016102440 | 12.82 | 15.51 | |
| spray gun | ||||
| 5 | 1609350449 | 39.14 | 47.36 | |
| Special Screw | ||||
| 5/01 | 1609350480 | 4.94 | 5.98 | |
| Handle Cover | ||||
| 5/02 | 1609350481 | 16.79 | 20.32 | |
| Compression Spring | ||||
| 5/03 | 1609350482 | 2.86 | 3.46 | |
| Parts Set | ||||
| 5/04 | 1609350483 | 4.94 | 5.98 | |
| Push-Button | ||||
| 5/05 | 1609350484 | 9.67 | 11.70 | |
| Molded Part | ||||
| 5/06 | 1609350485 | 1.49 | 1.80 | |
| Molded Part | ||||
| 5/07 | 1609350486 | 8.35 | 10.10 | |
| Hose | ||||
| 6/01 | F016102514 | 47.53 | 57.51 | |
| O-Ring 8,9x2,7 MM | ||||
| 6/02 | 1609350487 | 1.49 | 1.80 | |
| Extension Tube | ||||
| 6/03 | 1609350451 | 23.90 | 28.92 | |
| Parts Set | ||||
| 6/04 | 1609350491 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 6/05 | 1609203577 | |||
| Jet Pipe | ||||
| 6/07 | F016102471 | 39.14 | 47.36 | |
| Spray Tube | ||||
| 6/08 | F016102668 | 136.48 | 165.14 | |
| Container | ||||
| 6/09 | 1609350492 | 9.67 | 11.70 | |
| Nozzle | ||||
| 6/10 | F016102474 | 39.14 | 47.36 | |
| Housing | ||||
| 7/01 | F016102455 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 7/02 | F016102642 | |||
| Cellular-Rubber Band | ||||
| 7/03 | F016102415 | 4.18 | 5.06 | |
| Screw | ||||
| 7/05 | F016102416 | 1.49 | 1.80 | |
| O-Ring 32,99x2,62 MM | ||||
| 7/06 | F016102426 | 2.86 | 3.46 | |
| Protective Cover | ||||
| 7/07 | F016102417 | 4.18 | 5.06 | |
| Switch | ||||
| 7/08 | F016102418 | 10.90 | 13.19 | |
| Support | ||||
| 7/09 | F016102419 | 4.18 | 5.06 | |
| Strain-Relief Clamp | ||||
| 7/10 | F016102420 | 10.90 | 13.19 | |
| Power supply cord | ||||
| 7/11 | F016102515 | 39.14 | 47.36 | |
| Bushing | ||||
| 7/12 | F016102507 | 2.40 | 2.90 | |
| Pressure Switch | ||||
| 8 | F016102456 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 8/01 | F016102519 | |||
| O-Ring 17,17x1,78 MM | ||||
| 8/04 | F016102405 | 5.81 | 7.03 | |
| Clip | ||||
| 8/05 | F016102499 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 9 | F016102666 | |||
| Hose | ||||
| 10/01 | F016102667 | 58.03 | 70.22 | |
| No longer available, no replacement | ||||
| 10/02 | F016102530 | |||
| Jet Pipe | ||||
| 11 | F016102473 | 71.68 | 86.73 | |
| No longer available, no replacement | ||||
| 11/01 | 1609203577 | |||
| Nozzle | ||||
| 12 | F016102795 | 110.30 | 133.46 | |
| No longer available, no replacement | ||||
| 12/01 | 1609203577 | |||
| Nozzle | ||||
| 13 | F016102474 | 39.14 | 47.36 | |
| Container | ||||
| 13/01 | 1609350492 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 13/02 | 1609203577 | |||
