Here you will find all available parts and drawings of the 'Bosch 0603231503 ( AGS10 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

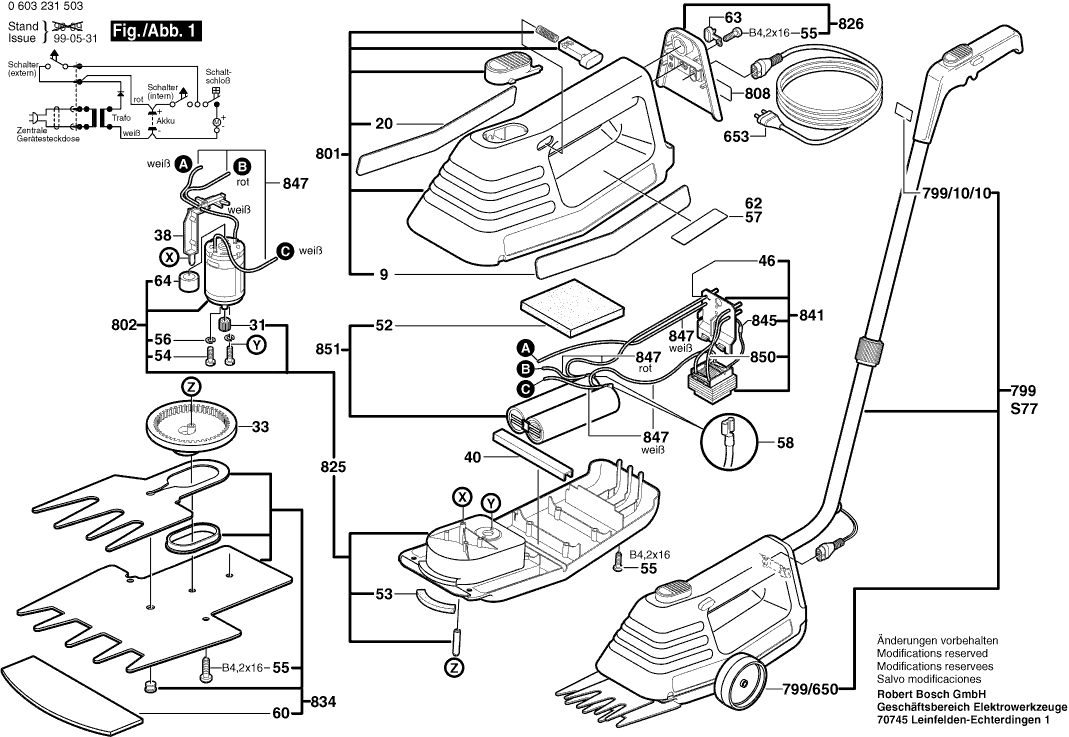

Technical drawing of model Bosch 0603231503 ( AGS10 )
Spare parts list of model Bosch 0603231503 ( AGS10 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601119398 | 2.71 | 3.28 | |
| Reference Plate SUNNY SIDE | ||||
| 9 | 1601110125 | 0.83 | 1.00 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601119402 | 2.71 | 3.28 | |
| Pinion Z=10, Ø3,1 MM | ||||
| 31 | 2606316113 | 2.24 | 2.71 | |
| Pinion Z=10, Ø2,3 MM | ||||
| 31 | 2606316175 | 2.24 | 2.71 | |
| Eccentric Gear Wheel Z=85 | ||||
| 33 | 2606334004 | 4.10 | 4.96 | |
| Contact Housing | ||||
| 38 | 2608018002 | 3.31 | 4.01 | |
| Cover Strip | ||||
| 40 | 2602386000 | 1.70 | 2.06 | |
| Contact Sleeve | ||||
| 46 | 2600422003 | 1.18 | 1.43 | |
| Damping Plate 60x80x2 MM | ||||
| 52 | 2602388007 | 1.18 | 1.43 | |
| Wiper | ||||
| 53 | 2602391002 | 1.18 | 1.43 | |
| Socket head cap screw AM 2,6x8 MM | ||||
| 54 | 2603413030 | 1.18 | 1.43 | |
| Socket head cap screw DIN 84-AM3x8-8.8 | ||||
| 54 | 2910021050 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 55 | 2603490022 | 0.83 | 1.00 | |
| Spring Lock Washer A3-FSt | ||||
| 56 | 2916690001 | 0.83 | 1.00 | |
| Reference Plate | ||||
| 57 | 1601110317 | 1.18 | 1.43 | |
| Receptacle | ||||
| 58 | 1904478015 | 1.18 | 1.43 | |
| Protective Cap | ||||
| 60 | 2605510018 | 1.18 | 1.43 | |
| Sticker | ||||
| 62 | 2601110999 | 0.83 | 1.00 | |
| Protective Cap | ||||
| 63 | 2605500141 | 1.18 | 1.43 | |
| Adapter | ||||
| 64 | 2605719025 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 653 | 2604460107 | |||
| No longer available, no replacement | ||||
| 799 | 2607001181 | |||
| Manufacturer's nameplate | ||||
| 799/10/10 | 2601110601 | 1.18 | 1.43 | |
| Impeller | ||||
| 799/650 | 1609200927 | 5.83 | 7.05 | |
| Upper Housing GREEN | ||||
| 801 | 2605104831 | 12.41 | 15.02 | |
| DC motor 18V | ||||
| 802 | 2607022960 | 23.75 | 28.74 | |
| Nameplate | ||||
| 808 | 160111A3H4 | 0.83 | 1.00 | |
| DC motor 18V | ||||
| 825 | 2607022960 | 23.75 | 28.74 | |
| Housing Cover GREEN | ||||
| 826 | 2605500906 | 2.24 | 2.71 | |
| Housing Cover BLACK | ||||
| 826 | 1609200920 | 1.94 | 2.35 | |
| Set of Knives 100 MM | ||||
| 834 | 1609200908 | 29.75 | 36.00 | |
| Charging Transformer 230V/4,8V | ||||
| 841 | 1609200915 | 18.19 | 22.01 | |
| Parts Set 2 PIECE | ||||
| 845 | 2607010227 | 2.24 | 2.71 | |
| Connecting Cable | ||||
| 847 | 2604412900 | 3.31 | 4.01 | |
| Connecting Cable L=63 MM WHITE | ||||
| 850 | 2604412023 | 1.18 | 1.43 | |
| Battery Set | ||||
| 851 | 1609200922 | 49.56 | 59.97 | |
