Here you will find all available parts and drawings of the 'Bosch 3600HB9901 (ADVANCEDROTAK36-950)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

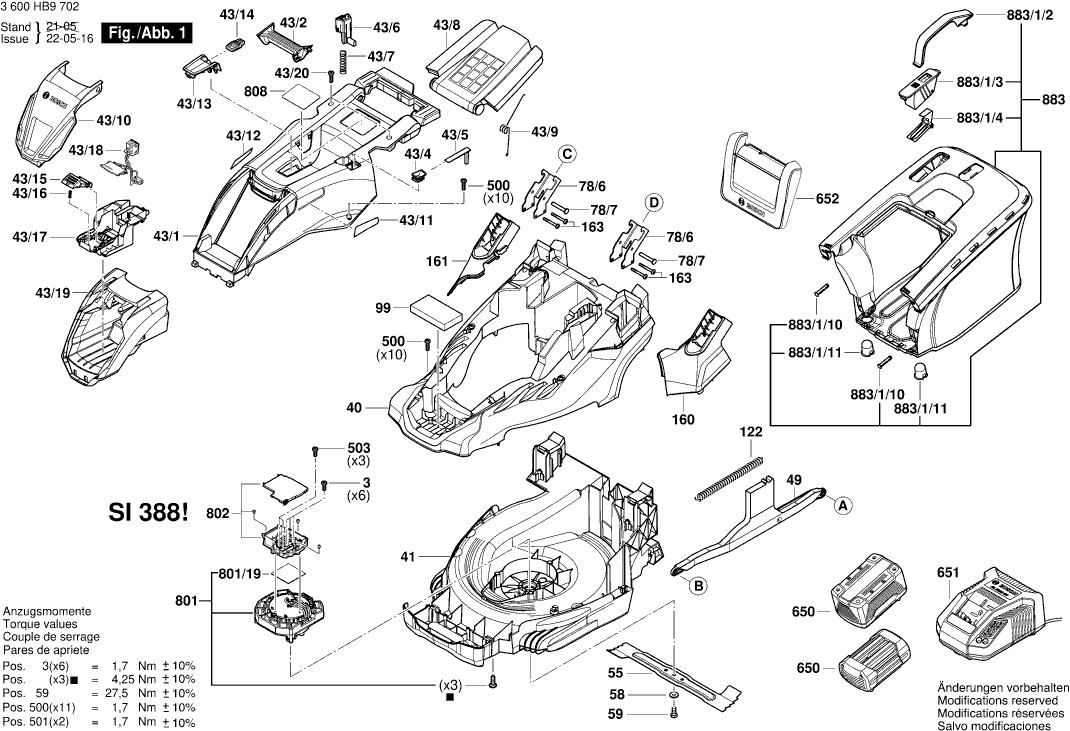

Technical drawing of model Bosch 3600HB9901 (ADVANCEDROTAK36-950)
Spare parts list of model Bosch 3600HB9901 (ADVANCEDROTAK36-950)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Thread-forming tap. Screw | ||||
| 3 | 2603410048 | 1.49 | 1.80 | |
| Screw | ||||
| 3 | 160343003T | 1.00 | 1.21 | |
| Torx head screw | ||||
| 32 | F016L69108 | 1.00 | 1.21 | |
| Mower deck 42/46 | ||||
| 40 | F016L90982 | 27.81 | 33.65 | |
| Housing 46 | ||||
| 41 | F016L90749 | 37.50 | 45.38 | |
| Motor Hood | ||||
| 43/1 | F016L90017 | 16.79 | 20.32 | |
| grille | ||||
| 43/10 | F016L91059 | 15.61 | 18.89 | |
| Sticker ProSilence L | ||||
| 43/11 | F016L90076 | 2.40 | 2.90 | |
| Sticker PowerDrive L | ||||
| 43/11 | 160111C3G3 | 2.40 | 2.90 | |
| Sticker PowerDrive R | ||||
| 43/12 | 160111C3G4 | 2.40 | 2.90 | |
| Sticker ProSilence R | ||||
| 43/12 | F016L90077 | 2.40 | 2.90 | |
| Cover Panel | ||||
| 43/13 | F016L90021 | 1.90 | 2.30 | |
| Key | ||||
| 43/14 | F016L90054 | 7.46 | 9.03 | |
| Release Lever | ||||
| 43/15 | F016L90773 | 5.96 | 7.21 | |
| Button Spring | ||||
| 43/16 | F016L90701 | 1.00 | 1.21 | |
| Switch Support | ||||
| 43/17 | F016L90777 | 5.96 | 7.21 | |
| Wiring Harness | ||||
| 43/18 | F016L90833 | 17.60 | 21.30 | |
| Battery Housing | ||||
| 43/19 | F016L90057 | 10.68 | 12.92 | |
| Carrying Handle | ||||
| 43/2 | F016L90018 | 1.49 | 1.80 | |
| Torx head screw | ||||
| 43/20 | F016L68124 | 1.00 | 1.21 | |
| Transparent Cover | ||||
| 43/4 | F016L90432 | 1.49 | 1.80 | |
| Indicator | ||||
| 43/5 | F016L90433 | 3.44 | 4.16 | |
| Button | ||||
| 43/6 | 1600A022AC | 2.08 | 2.52 | |
| Button Spring | ||||
| 43/7 | F016L91168 | 1.00 | 1.21 | |
| Guard Flap | ||||
| 43/8 | F016L90022 | 7.46 | 9.03 | |
| Spring | ||||
| 43/9 | F016L90868 | 1.49 | 1.80 | |
| Linkage part | ||||
| 49 | F016L90028 | 9.67 | 11.70 | |
| Axle | ||||
| 52/1 | F016L90007 | 4.94 | 5.98 | |
| Link Piece | ||||
| 52/2 | F016L90033 | 1.49 | 1.80 | |
| Link Piece | ||||
| 52/3 | F016L90037 | 1.49 | 1.80 | |
| Wheel | ||||
| 52/805 | F016105108 | 9.67 | 11.70 | |
| Wheel ear | ||||
| 52/805 | F016104422 | 8.35 | 10.10 | |
| Cutter Blade 44cm | ||||
| 55 | F016L90160 | 20.39 | 24.67 | |
| Spring Washer 1/2" | ||||
| 58 | F016L66173 | 1.32 | 1.60 | |
| Bolt M10x30 | ||||
| 59 | F016L66141 | 2.18 | 2.64 | |
| Axle 42/46 | ||||
| 61/1 | F016L90006 | 4.94 | 5.98 | |
| Link Piece | ||||
| 61/2 | F016L90032 | 1.49 | 1.80 | |
| Spacer | ||||
| 61/3 | F016L90036 | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 61/4 | F016L68095 | 1.49 | 1.80 | |
| Wheel | ||||
| 61/805 | F016104421 | 9.67 | 11.70 | |
| Handle | ||||
| 75/1/1 | F016L90012 | 14.94 | 18.08 | |
| Bushing | ||||
| 75/1/2 | F016L90064 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 75/10 | F016L90074 | 1.00 | 1.21 | |
| Button | ||||
| 75/11 | F016L91039 | 2.08 | 2.52 | |
| Screw M5x8 Csk Hd. | ||||
| 75/14 | F016L36542 | 2.40 | 2.90 | |
| Torx head screw | ||||
| 75/15 | F016L68124 | 1.00 | 1.21 | |
| wiring unit | ||||
| 75/3 | F016L90850 | 15.61 | 18.89 | |
| Connector Housing | ||||
| 75/3/1 | F016L67218 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 75/3/2 | F016L90848 | |||
| Switch Kit | ||||
| 75/3/803 | F016104163 | 13.13 | 15.89 | |
| Sleeve | ||||
| 75/5 | F016L90070 | 2.08 | 2.52 | |
| Handle | ||||
| 75/6 | F016L90066 | 4.94 | 5.98 | |
| Handle | ||||
| 75/7 | F016L90067 | 5.81 | 7.03 | |
| Locking Pin | ||||
| 75/8 | F016L90068 | 1.49 | 1.80 | |
| Switch assembly | ||||
| 75/804 | F016105448 | 33.65 | 40.72 | |
| Lever | ||||
| 75/9 | F016L91109 | 2.52 | 3.05 | |
| Handle Bar | ||||
| 78/1 | F016L90013 | 11.37 | 13.76 | |
| release mechanism | ||||
| 78/2 | F016L90063 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 78/3 | F016L90841 | 1.00 | 1.21 | |
| release mechanism | ||||
| 78/4 | F016L90062 | 2.40 | 2.90 | |
| Bracket | ||||
| 78/6 | F016L90082 | 5.81 | 7.03 | |
| Pivot Pin | ||||
| 78/7 | F016L90014 | 1.00 | 1.21 | |
| Balance Weights | ||||
| 99 | F016L69400 | 17.60 | 21.30 | |
| Clip | ||||
| 121 | F016L91066 | 1.00 | 1.21 | |
| Spring | ||||
| 122 | F016L90072 | 2.86 | 3.46 | |
| Cover | ||||
| 131 | F016L68116 | 1.00 | 1.21 | |
| Cover | ||||
| 132 | F016L68116 | 1.00 | 1.21 | |
| Cover | ||||
| 160 | F016L90060 | 2.40 | 2.90 | |
| Cover | ||||
| 161 | F016L90061 | 2.40 | 2.90 | |
| Torx Oval-Head Screw | ||||
| 163 | 1613490011 | 2.08 | 2.52 | |
| Plain Washer | ||||
| 501 | 8716107299 | 1.00 | 1.21 | |
| Self-Cutting Screw | ||||
| 502 | F016L37433 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 503 | 2603410048 | 1.49 | 1.80 | |
| Battery Pack GBA 36V 6.0Ah H-C | ||||
| 650 | 1607A350RC | 340.97 | 412.57 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 650 | 1607A350R2 | 262.05 | 317.08 | |
| Battery Pack 36V 2,0 Ah Li | ||||
| 650 | 2607336913 | 187.62 | 227.02 | |
| Fast Charger EU AL 36V-20/36V | ||||
| 651 | 2607226273 | 64.67 | 78.25 | |
| Deflector Plate | ||||
| 652 | F016L90830 | 18.94 | 22.92 | |
| DC motor | ||||
| 801 | 1607000EF7 | 114.26 | 138.25 | |
| Thermal Conduction Foil | ||||
| 801/19 | 1600A01Z1R | 8.35 | 10.10 | |
| Electronic Module | ||||
| 802 | 1607000EF8 | 114.26 | 138.25 | |
| Nameplate | ||||
| 808 | 160111A7CM | 2.18 | 2.64 | |
| Collection box | ||||
| 883 | F016105378 | 64.67 | 78.25 | |
| Pin | ||||
| 883/1/10 | F016L91107 | 2.86 | 3.46 | |
| Socket insert | ||||
| 883/1/11 | F016L91108 | 2.86 | 3.46 | |
| Handle | ||||
| 883/1/2 | F016L90040 | 1.49 | 1.80 | |
| Cover | ||||
| 883/1/3 | F016L90557 | 2.08 | 2.52 | |
| Pivot Plate | ||||
| 883/1/4 | F016L91038 | 1.00 | 1.21 | |
