Here you will find all available parts and drawings of the 'Bosch 3603CB2402 (AdvancedRecip18)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

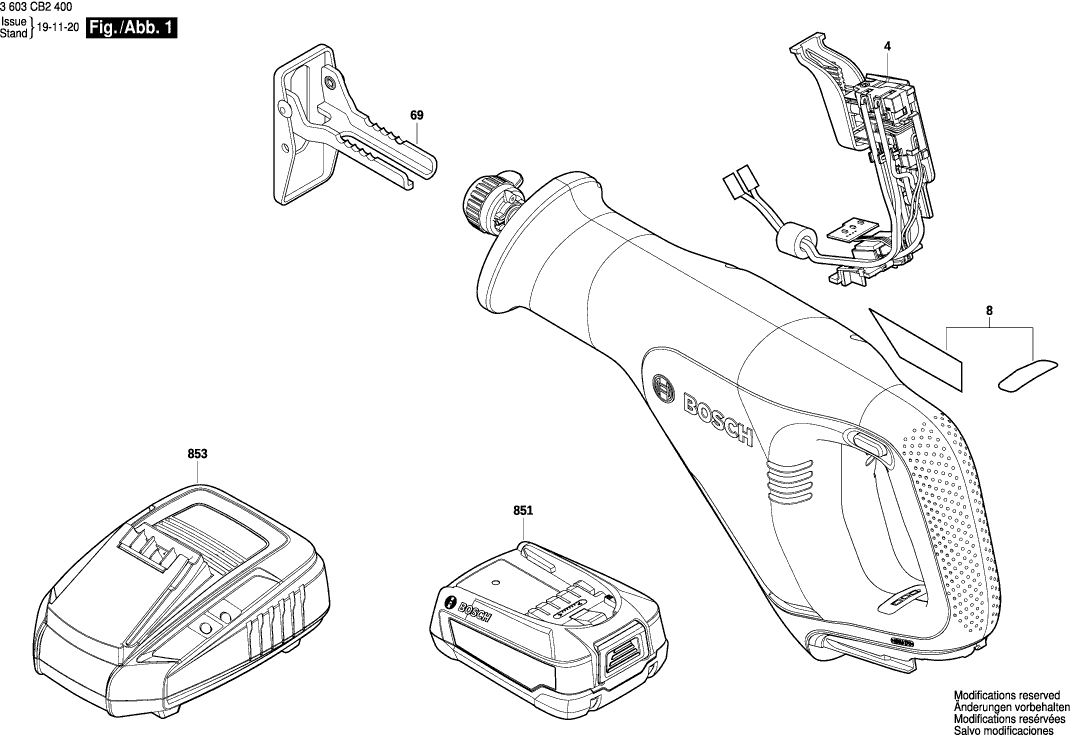

Technical drawing of model Bosch 3603CB2402 (AdvancedRecip18)
Spare parts list of model Bosch 3603CB2402 (AdvancedRecip18)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronics Module RED | ||||
| 4 | 1607000E2X | 47.53 | 57.51 | |
| Nameplate | ||||
| 8 | 1619P04382 | 1.00 | 1.21 | |
| Supporting foot | ||||
| 69 | 1619PB3484 | 7.46 | 9.03 | |
| Battery Pack PBA 18V 6,0Ah W-C | ||||
| 851 | 1607A3501Y | 155.51 | 188.17 | |
| Battery Pack | ||||
| 851 | 1607A350SA | 155.51 | 188.17 | |
| Battery Pack PBA 18V 4,0Ah W-C | ||||
| 851 | 1607A350S2 | 136.48 | 165.14 | |
| Battery Pack PBA 18V 4,0Ah W-C | ||||
| 851 | 1607A3507H | 113.29 | 137.08 | |
| Battery Pack PBA 3,0 Ah W-B | ||||
| 851 | 1607A3501M | 102.63 | 124.18 | |
| Battery Pack | ||||
| 851 | 1607A350RU | 88.83 | 107.48 | |
| Battery Pack | ||||
| 851 | 2607337211 | 88.83 | 107.48 | |
| Battery Pack | ||||
| 851 | 1617S02388 | 64.67 | 78.25 | |
| Battery Pack | ||||
| 851 | 1607A351C9 | 52.45 | 63.46 | |
| Fast Charger | ||||
| 853 | 2607225965 | 52.45 | 63.46 | |
