Here you will find all available parts and drawings of the 'Bosch 3603A04000 ( ADVANCEDMULTI18 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

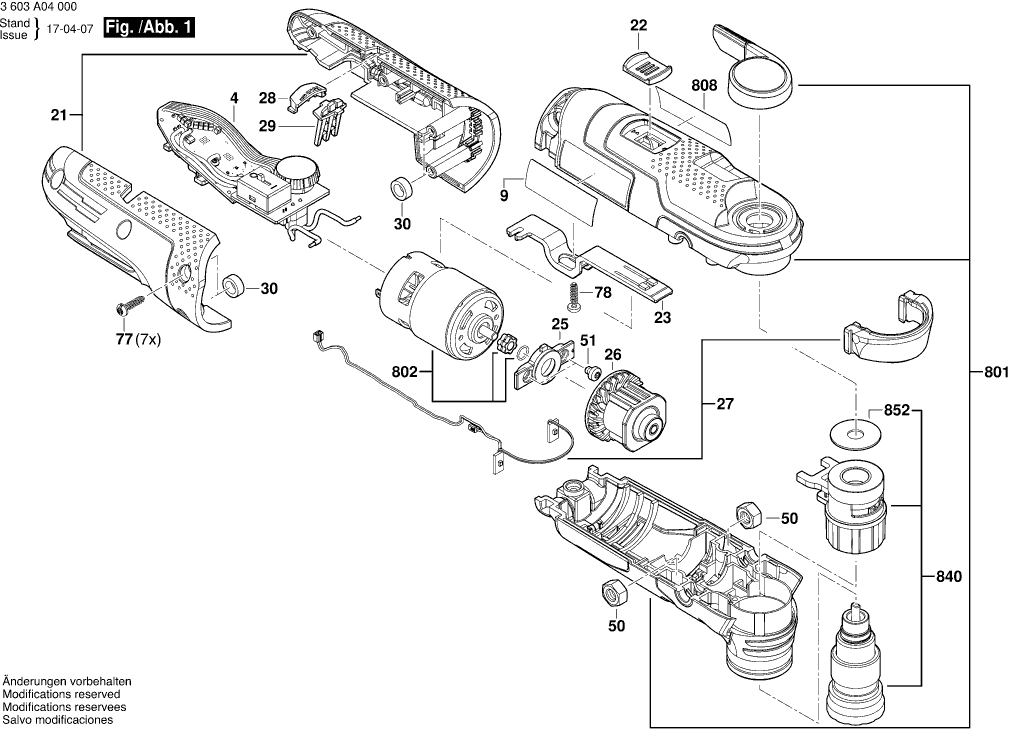

Technical drawing of model Bosch 3603A04000 ( ADVANCEDMULTI18 )
Spare parts list of model Bosch 3603A04000 ( ADVANCEDMULTI18 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronic Module | ||||
| 4 | 1600A00PG5 | 49.56 | 59.97 | |
| Manufacturer's nameplate AdvanvedMulti 18 | ||||
| 9 | 160111C20A | 1.94 | 2.35 | |
| Housing | ||||
| 21 | 16058065D3 | 11.88 | 14.37 | |
| Slide Button | ||||
| 22 | 2609005541 | 2.24 | 2.71 | |
| Slider | ||||
| 23 | 1600A01003 | 1.18 | 1.43 | |
| Flange | ||||
| 25 | 1600A00K1E | 0.83 | 1.00 | |
| Clutch Housing | ||||
| 26 | 1600A00MW8 | 23.75 | 28.74 | |
| Light Unit | ||||
| 27 | 1600A00K1F | 7.58 | 9.17 | |
| Cover | ||||
| 28 | 608276310K | 1.18 | 1.43 | |
| Lens | ||||
| 29 | 1600A00ZT1 | 0.83 | 1.00 | |
| Damping Ring | ||||
| 30 | 1600A00H25 | 0.83 | 1.00 | |
| Hex Nut DIN 934-M8-8-A | ||||
| 50 | 2915011009 | 1.94 | 2.35 | |
| Torx SH cap screw M4x8-4,8-Z | ||||
| 51 | 2603414049 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 77 | 2603490022 | 0.83 | 1.00 | |
| Torx Flat-Head Screw 3x16 | ||||
| 78 | 2609110201 | 1.70 | 2.06 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Carrying Case S | ||||
| 650 | 1600A013NM | 29.75 | 36.00 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Charger AUS AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225969 | 67.25 | 81.37 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Sander Plate | ||||
| 682 | 1600A008LT | 9.53 | 11.53 | |
| Depth gauge | ||||
| 684 | 1600A0087V | 1.18 | 1.43 | |
| Handle | ||||
| 687 | 160202507V | 10.73 | 12.98 | |
| Housing | ||||
| 801 | 16058065JK | 26.84 | 32.48 | |
| DC motor | ||||
| 802 | 160702266P | 33.45 | 40.47 | |
| Nameplate | ||||
| 808 | 160111A4ML | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 840 | 1600A00Y5F | |||
| Felt Disc | ||||
| 852 | 1607000C6D | 0.83 | 1.00 | |
