Here you will find all available parts and drawings of the 'Bosch 3603JA3401 ( ADVANCEDIMPACT18 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

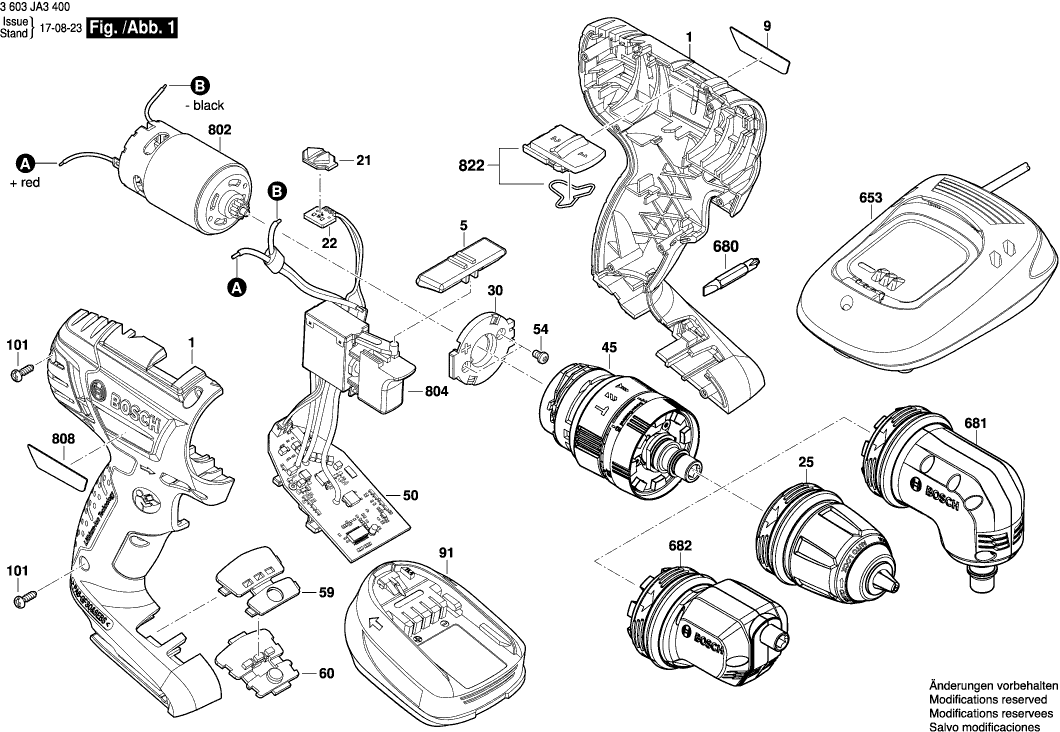

Technical drawing of model Bosch 3603JA3401 ( ADVANCEDIMPACT18 )
Spare parts list of model Bosch 3603JA3401 ( ADVANCEDIMPACT18 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609007147 | 23.75 | 28.74 | |
| Lever | ||||
| 5 | 2609004983 | 1.18 | 1.43 | |
| Manufacturer's nameplate AdvancedImpact 18 | ||||
| 9 | 160111C27B | 1.94 | 2.35 | |
| Lens | ||||
| 21 | 2609002598 | 0.83 | 1.00 | |
| Electronic Assembly | ||||
| 22 | 2609005142 | 4.10 | 4.96 | |
| Chuck attachment | ||||
| 25 | 1600A003PW | 33.45 | 40.47 | |
| Flange | ||||
| 30 | 2609005196 | 1.18 | 1.43 | |
| Gear Box | ||||
| 45 | 1600A00HN8 | 40.61 | 49.14 | |
| Electronic Assembly | ||||
| 50 | 1600A01PK9 | 29.75 | 36.00 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Cover | ||||
| 59 | 2609004985 | 1.94 | 2.35 | |
| Lens | ||||
| 60 | 2609004984 | 1.94 | 2.35 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 2607337187 | 57.10 | 69.09 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 1607A350JM | 55.25 | 66.85 | |
| Torx Oval-Head Screw 3x10 | ||||
| 101 | 2603490017 | 1.70 | 2.06 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Screwdriver Bit | ||||
| 680 | 2609006257 | 1.18 | 1.43 | |
| Combi Angle Drive | ||||
| 681 | 1600A003UA | 44.82 | 54.23 | |
| Eccentric attachment | ||||
| 682 | 1600A0077F | 44.82 | 54.23 | |
| DC motor 14,4V - 18V | ||||
| 802 | 1607000DM0 | 26.84 | 32.48 | |
| Switch | ||||
| 804 | 2609005666 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 160111A75H | 1.94 | 2.35 | |
| Switchover Unit | ||||
| 822 | 1600A00R9E | 4.10 | 4.96 | |
