Here you will find all available parts and drawings of the 'Bosch 3603CE5100 (AdvancedGrind18V-80)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

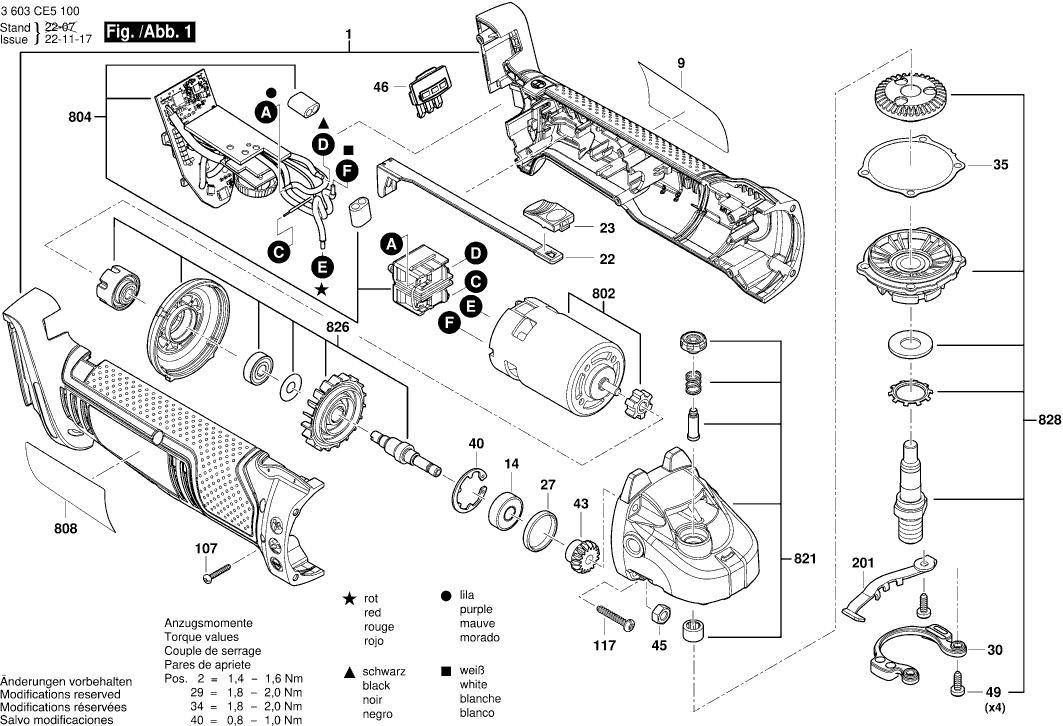

Technical drawing of model Bosch 3603CE5100 (AdvancedGrind18V-80)
Spare parts list of model Bosch 3603CE5100 (AdvancedGrind18V-80)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1600A029GE | 11.37 | 13.76 | |
| Manufacturer's nameplate AdvanceGrind 18V-80 | ||||
| 9 | 160111C4U8 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 2600905078 | 6.73 | 8.14 | |
| Adjusting Slide | ||||
| 22 | 1600A01U5N | 1.00 | 1.21 | |
| Switch Button | ||||
| 23 | 1600A007UL | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Vibration Damper | ||||
| 30 | 2609007464 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 2609002210 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 2609002208 | 1.00 | 1.21 | |
| Shim | ||||
| 35 | 2609002209 | 1.00 | 1.21 | |
| Shim | ||||
| 35 | 1600A00RE3 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 40 | 2609007545 | 1.00 | 1.21 | |
| Bevel Gear Z=35 | ||||
| 43 | 1606333633 | 5.81 | 7.03 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Lens | ||||
| 46 | 1600A02A8L | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 49 | 2610386516 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 107 | 2603490018 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 117 | 2603490024 | 1.49 | 1.80 | |
| Protective Cover Ø125 MM | ||||
| 200 | 1600A02JM9 | 12.82 | 15.51 | |
| Leaf Spring | ||||
| 201 | 2609002205 | 4.94 | 5.98 | |
| Handle | ||||
| 680 | 2609002198 | 9.67 | 11.70 | |
| Quick Acting Flange | ||||
| 681 | 1600A029FC | 11.37 | 13.76 | |
| Clamping Flange | ||||
| 682 | 2605703014 | 7.53 | 9.11 | |
| DC motor | ||||
| 802 | 160702268L | 80.26 | 97.11 | |
| Electronic Assembly | ||||
| 804 | 1600A0231N | 64.67 | 78.25 | |
| Nameplate | ||||
| 808 | 160111A9NT | 2.40 | 2.90 | |
| Gear Housing | ||||
| 821 | 160580666A | 14.94 | 18.08 | |
| Drive Unit | ||||
| 826 | 1600A01U69 | 31.42 | 38.02 | |
| Bearing Flange | ||||
| 828 | 16058080CS | 34.82 | 42.13 | |
| Battery Pack PBA 18V 2,5 Ah W-B | ||||
| 851 | 2607337199 | 91.33 | 110.51 | |
| Battery Pack | ||||
| 851 | 1607A350RU | 88.83 | 107.48 | |
| Charger | ||||
| 853 | 2607225967 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 853 | 2607225965 | 52.45 | 63.46 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
