Here you will find all available parts and drawings of the 'Bosch 3603JB5001 ( ADVANCEDDRILL18 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

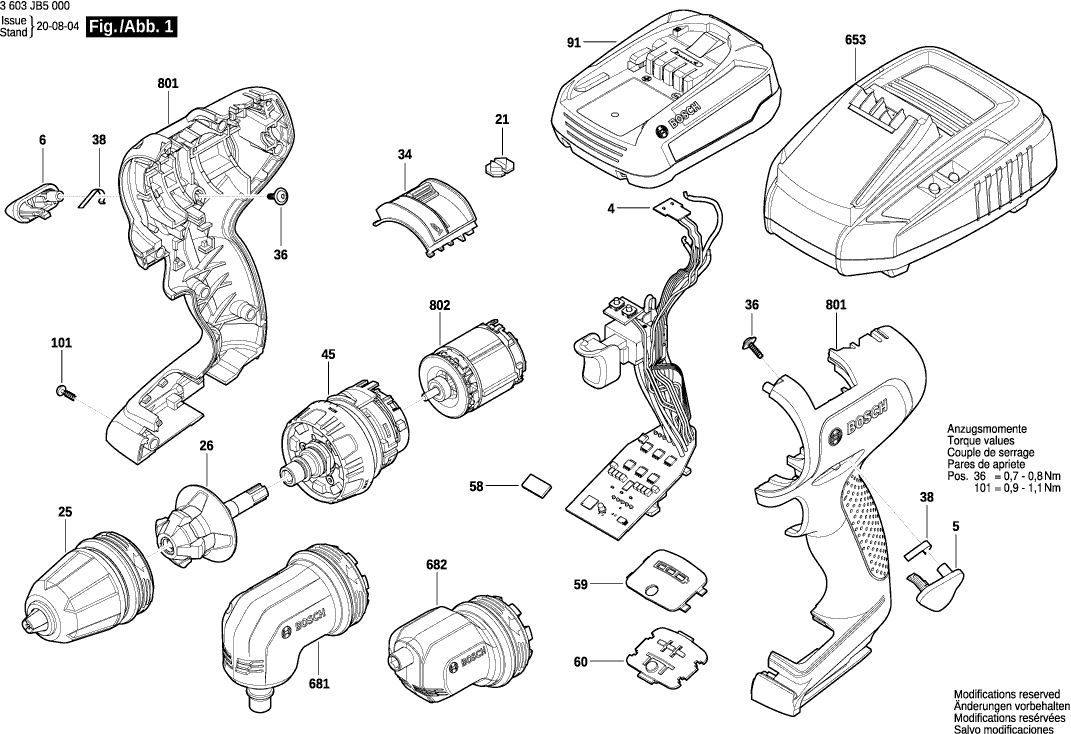

Technical drawing of model Bosch 3603JB5001 ( ADVANCEDDRILL18 )
Spare parts list of model Bosch 3603JB5001 ( ADVANCEDDRILL18 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronic Module | ||||
| 4 | 1600A0220T | 44.82 | 54.23 | |
| Changeover Lever | ||||
| 5 | 1600A0220F | 0.83 | 1.00 | |
| Changeover Lever | ||||
| 6 | 1600A0220G | 0.83 | 1.00 | |
| Lens | ||||
| 21 | 1600A0142S | 0.83 | 1.00 | |
| Chuck attachment | ||||
| 25 | 1600A012DH | 23.75 | 28.74 | |
| Holding Device | ||||
| 26 | 1600A0130R | 4.70 | 5.69 | |
| Housing Cover | ||||
| 34 | 16055002HG | 4.10 | 4.96 | |
| Special Screw | ||||
| 36 | 1600A00RD6 | 0.83 | 1.00 | |
| Retaining Element | ||||
| 38 | 1600A018U7 | 0.83 | 1.00 | |
| Planetary Gear Train | ||||
| 45 | 1600A022UZ | 33.45 | 40.47 | |
| Magnet | ||||
| 58 | 1600A01134 | 1.18 | 1.43 | |
| Cover | ||||
| 59 | 16055002HT | 1.18 | 1.43 | |
| Lens | ||||
| 60 | 1600A0142R | 0.83 | 1.00 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Combi Angle Drive | ||||
| 681 | 1600A003UA | 44.82 | 54.23 | |
| Eccentric attachment | ||||
| 682 | 1600A0077F | 44.82 | 54.23 | |
| Housing | ||||
| 801 | 1600A02440 | 18.19 | 22.01 | |
| DC motor | ||||
| 802 | 1600A01C44 | 49.56 | 59.97 | |
