Here you will find all available parts and drawings of the 'Bosch F013776077 ( 7760 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

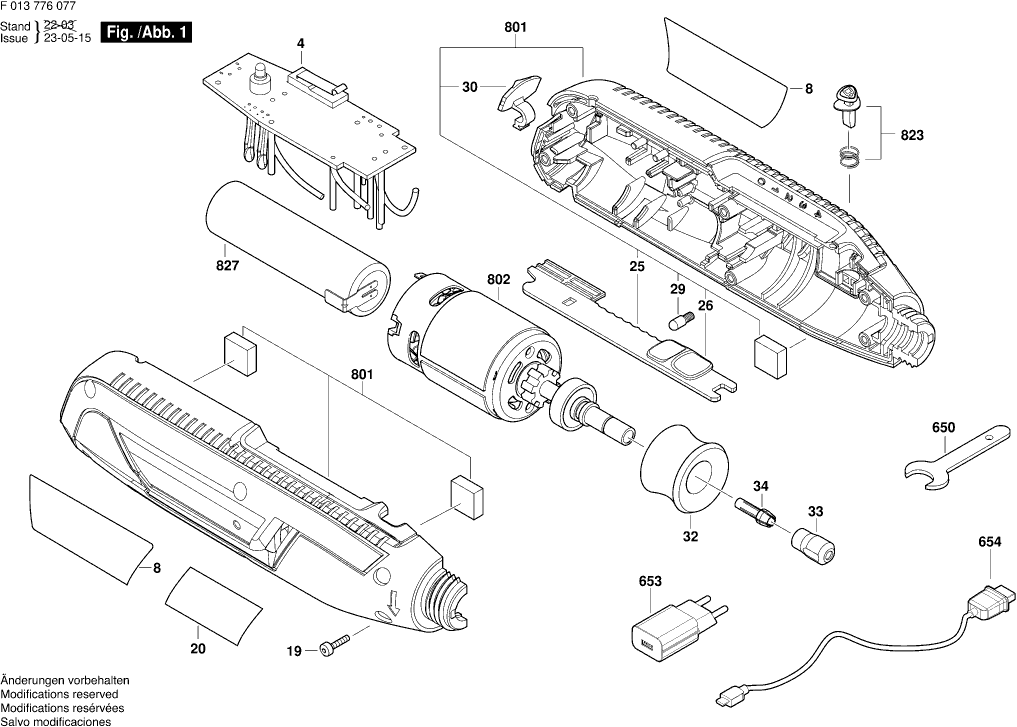

Technical drawing of model Bosch F013776077 ( 7760 )
Spare parts list of model Bosch F013776077 ( 7760 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronic Assembly | ||||
| 4 | 1600A018W7 | 33.45 | 40.47 | |
| Label | ||||
| 8 | 1600A01P6A | 1.94 | 2.35 | |
| Screw | ||||
| 19 | 2610013397 | 0.83 | 1.00 | |
| Warning Label | ||||
| 20 | 1600A01P6D | 1.94 | 2.35 | |
| Switch Actuator | ||||
| 25 | 1600A0195K | 0.83 | 1.00 | |
| Cap | ||||
| 26 | 1600A018W8 | 0.83 | 1.00 | |
| Ratchet Cap | ||||
| 29 | 2600590006 | 1.18 | 1.43 | |
| Dust seal | ||||
| 30 | 1600A01A54 | 0.83 | 1.00 | |
| Nose | ||||
| 32 | 2610013854 | 1.94 | 2.35 | |
| Nut | ||||
| 33 | 2610014582 | 1.70 | 2.06 | |
| contour sleeve 1/8" | ||||
| 34 | 2615110480 | 2.71 | 3.28 | |
| Chuck Wrench | ||||
| 650 | 2610930692 | 1.94 | 2.35 | |
| No information available, not orderable | ||||
| 653 | 26150510AC | |||
| No longer available, no replacement | ||||
| 654 | 1607000DN8 | |||
| Housing Set | ||||
| 801 | 1605A00047 | 12.41 | 15.02 | |
| Motor | ||||
| 802 | 1605A000DX | 11.88 | 14.37 | |
| shaft lock | ||||
| 823 | 1605A00048 | 1.70 | 2.06 | |
| Battery | ||||
| 827 | 1605A000DY | 12.41 | 15.02 | |
