Here you will find all available parts and drawings of the 'Bosch F013775045 (7750)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

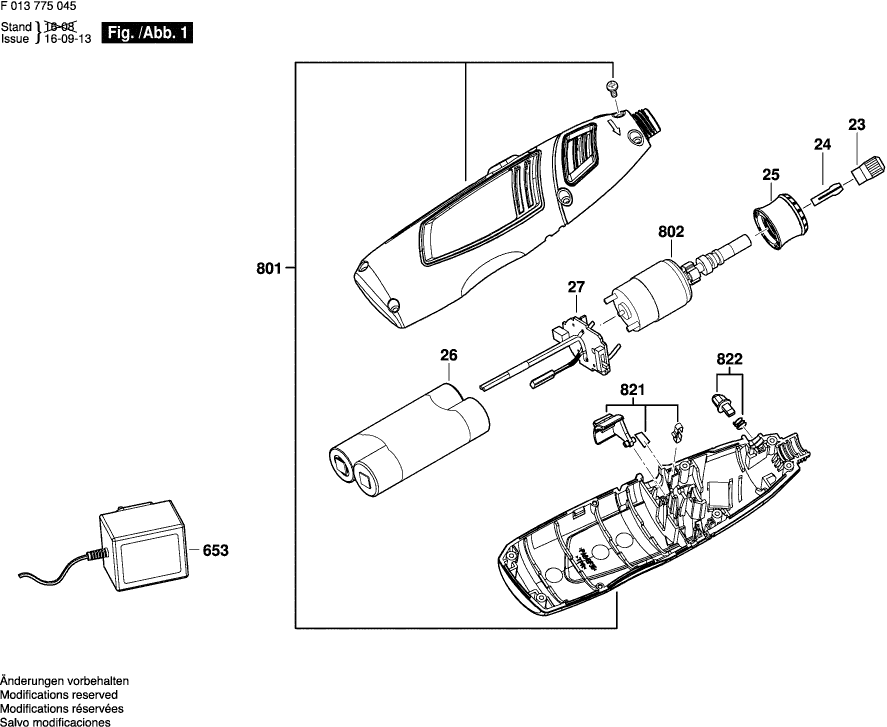

Technical drawing of model Bosch F013775045 (7750)
Spare parts list of model Bosch F013775045 (7750)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nut | ||||
| 23 | 2610014582 | 1.90 | 2.30 | |
| contour sleeve 1/8" | ||||
| 24 | 2615110480 | 3.44 | 4.16 | |
| Nose | ||||
| 25 | 2610013854 | 2.18 | 2.64 | |
| Battery | ||||
| 26 | 2610Z08525 | 26.84 | 32.48 | |
| Electronic Module | ||||
| 27 | 2610Z08522 | 13.90 | 16.82 | |
| Battery Charger 230V / 5V / EU | ||||
| 653 | 2610Z08207 | 15.61 | 18.89 | |
| Battery Charger 230V / 5V / GB | ||||
| 653 | 2610Z08208 | 15.61 | 18.89 | |
| Battery Charger 230V / 5V / AUS | ||||
| 653 | 2610Z10063 | 15.61 | 18.89 | |
| Housing Cover | ||||
| 801 | 2610Z08523 | 9.47 | 11.46 | |
| DC motor | ||||
| 802 | 2610Z08521 | 15.61 | 18.89 | |
| Button Set | ||||
| 821 | 2610Z08524 | 2.18 | 2.64 | |
| Button Set | ||||
| 822 | 2610Z08520 | 3.04 | 3.68 | |
