Here you will find all available parts and drawings of the 'Bosch F013680045 ( 6800 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

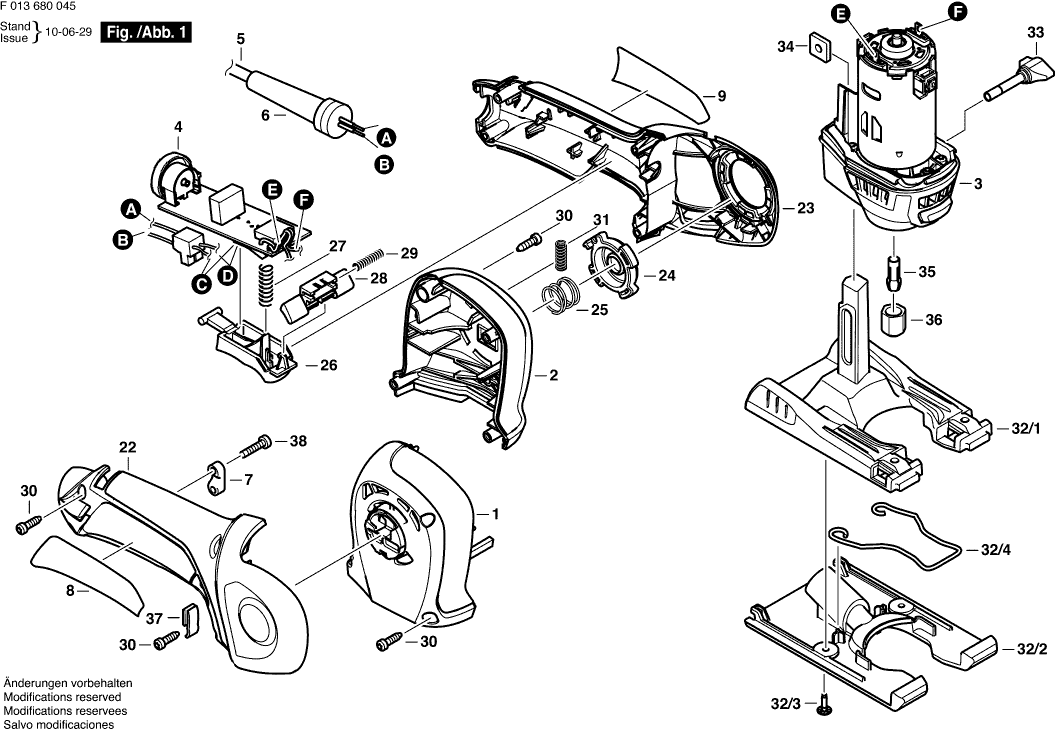

Technical drawing of model Bosch F013680045 ( 6800 )
Spare parts list of model Bosch F013680045 ( 6800 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2610004781 | 13.93 | 16.86 | |
| Housing Cover | ||||
| 2 | 2610004782 | 12.41 | 15.02 | |
| Motor | ||||
| 3 | 2610004825 | 73.72 | 89.20 | |
| Speed governor | ||||
| 4 | 2610004830 | 29.75 | 36.00 | |
| Power supply cord EU 230V 2m 2 x 0,75mm H05 VV-F | ||||
| 5 | 2615302694 | 11.88 | 14.37 | |
| Grommet | ||||
| 6 | 2615302548 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2615650007 | 1.94 | 2.35 | |
| Nameplate | ||||
| 8 | 2610004817 | 1.94 | 2.35 | |
| Label | ||||
| 9 | 2610004802 | 1.94 | 2.35 | |
| Handle | ||||
| 22 | 2610004783 | 11.88 | 14.37 | |
| Handle Cover | ||||
| 23 | 2610004784 | 11.88 | 14.37 | |
| Locking part | ||||
| 24 | 2610004790 | 4.70 | 5.69 | |
| Compression Spring | ||||
| 25 | 2610011212 | 2.24 | 2.71 | |
| Trigger | ||||
| 26 | 2610004791 | 5.83 | 7.05 | |
| Compression Spring | ||||
| 27 | 2610004797 | 0.83 | 1.00 | |
| Locking Lever | ||||
| 28 | 2610004794 | 4.70 | 5.69 | |
| Compression Spring | ||||
| 29 | 2610004789 | 0.83 | 1.00 | |
| Cross Recessed-Head Screw | ||||
| 30 | 2615294035 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 31 | 2610004808 | 1.94 | 2.35 | |
| Casing Foot | ||||
| 32/1 | 2610004778 | 20.42 | 24.71 | |
| Base Plate | ||||
| 32/2 | 2610004779 | 13.93 | 16.86 | |
| Screw | ||||
| 32/3 | 2610004824 | 0.83 | 1.00 | |
| Protection | ||||
| 32/4 | 2610011176 | 4.70 | 5.69 | |
| Wing Screw | ||||
| 33 | 2610004793 | 1.70 | 2.06 | |
| Adjusting Wrench | ||||
| 34 | 2610913184 | 3.31 | 4.01 | |
| contour sleeve | ||||
| 35 | 2610007764 | 0.83 | 1.00 | |
| Square Nut | ||||
| 36 | 2610007765 | 1.94 | 2.35 | |
| Rubber Pad | ||||
| 37 | 2610011174 | 0.83 | 1.00 | |
| Screw ST3,9x19 | ||||
| 38 | 2610315386 | 1.18 | 1.43 | |
