Here you will find all available parts and drawings of the 'Bosch F013420045 (4200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

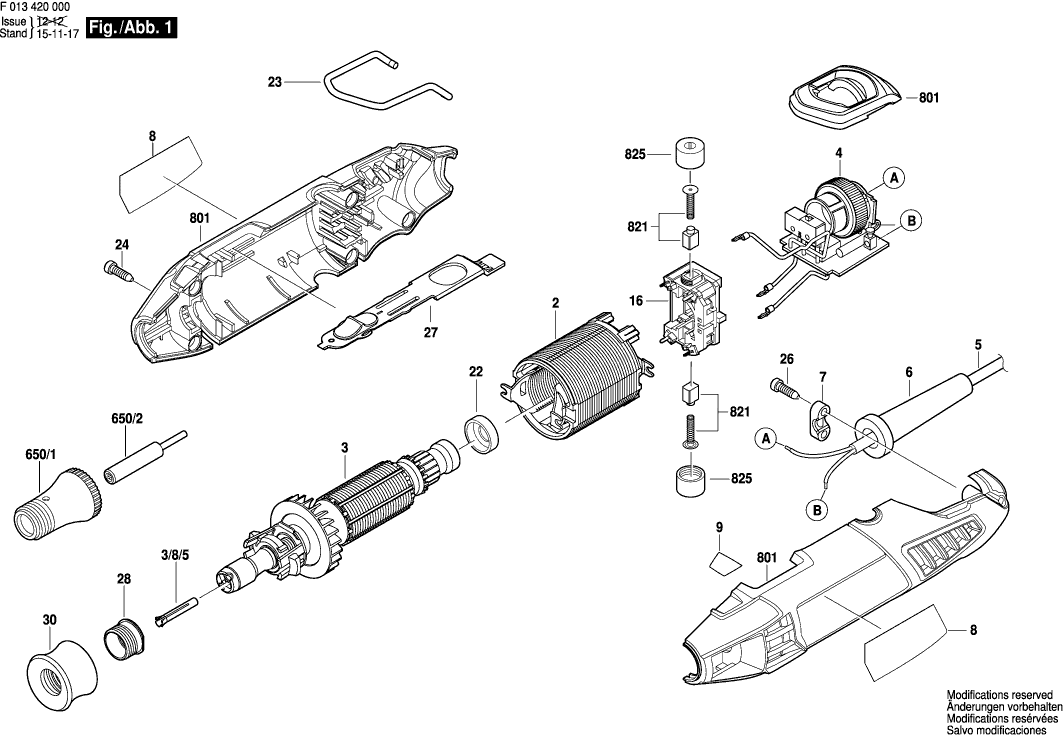

Technical drawing of model Bosch F013420045 (4200)
Spare parts list of model Bosch F013420045 (4200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 2610004556 | 13.90 | 16.82 | |
| Armature 230V | ||||
| 3 | 2610021231 | 67.98 | 82.26 | |
| contour sleeve | ||||
| 3/8/5 | 2610017144 | 17.60 | 21.30 | |
| Printed Circuit Board | ||||
| 4 | 2610021232 | 23.75 | 28.74 | |
| Power supply cord EU 230V 2m 2 x 0,75mm H05 VV-F | ||||
| 5 | 2615302694 | 12.21 | 14.77 | |
| Cord guard | ||||
| 6 | 2610015860 | 1.32 | 1.60 | |
| Cable Clip | ||||
| 7 | 2615650007 | 2.18 | 2.64 | |
| Label | ||||
| 8 | 2610021250 | 2.18 | 2.64 | |
| Label | ||||
| 9 | 2610019981 | 2.18 | 2.64 | |
| Brush Holder | ||||
| 16 | 2610017151 | 9.47 | 11.46 | |
| Damping rubber | ||||
| 22 | 2615302505 | 1.90 | 2.30 | |
| Suspension Loop | ||||
| 23 | 2610017150 | 1.00 | 1.21 | |
| Cross Recessed-Head Screw | ||||
| 24 | 2615294035 | 1.49 | 1.80 | |
| Screw | ||||
| 26 | 2610315386 | 1.49 | 1.80 | |
| Linkage | ||||
| 27 | 2610017147 | 1.32 | 1.60 | |
| Threaded Ring | ||||
| 28 | 2610017145 | 4.58 | 5.54 | |
| Nose | ||||
| 30 | 2610017148 | 3.04 | 3.68 | |
| Adapter | ||||
| 650/1 | 2610019990 | 2.18 | 2.64 | |
| Drive | ||||
| 650/2 | 2610019991 | 3.04 | 3.68 | |
| Housing | ||||
| 801 | 2610019976 | 22.88 | 27.68 | |
| Carbon Brush | ||||
| 821 | 2610021241 | 5.27 | 6.38 | |
| Brush-Cover | ||||
| 825 | 2610027446 | 1.32 | 1.60 | |
