Here you will find all available parts and drawings of the 'Bosch F013300045 (3000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

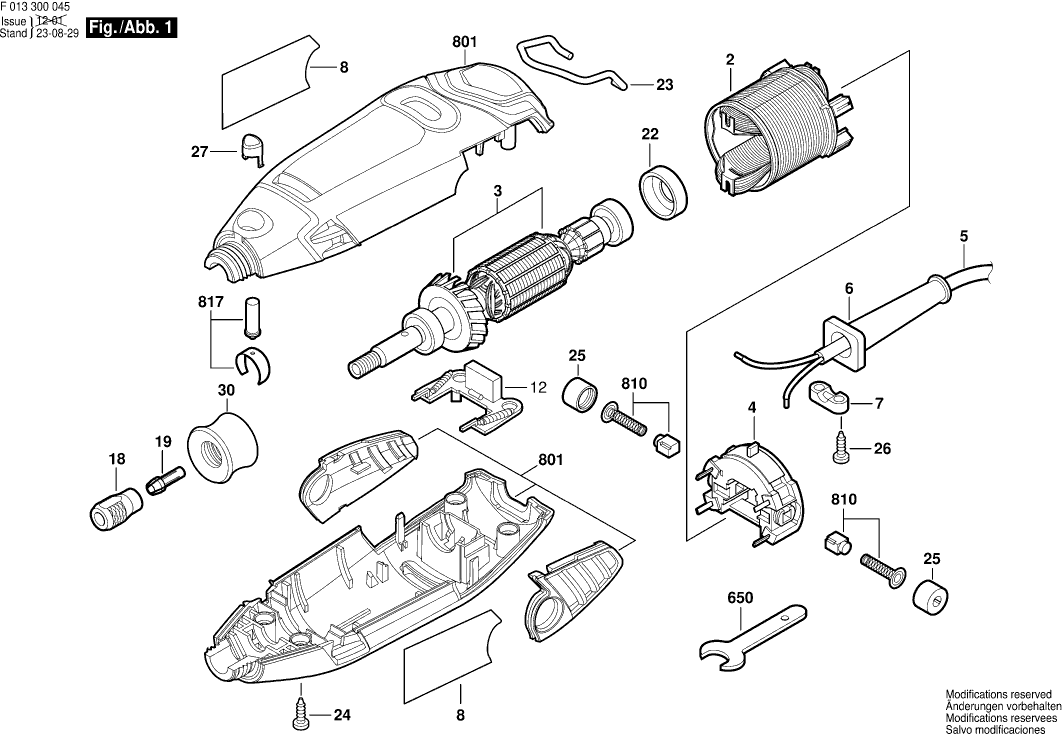

Technical drawing of model Bosch F013300045 (3000)
Spare parts list of model Bosch F013300045 (3000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 2615298792 | 13.90 | 16.82 | |
| Armature 230V | ||||
| 3 | 2610009848 | 22.88 | 27.68 | |
| Switch | ||||
| 4 | 2610009844 | 10.68 | 12.92 | |
| Power supply cord EU 230V 2m 2 x 0,75mm H05 VV-F | ||||
| 5 | 2615302694 | 12.21 | 14.77 | |
| Grommet | ||||
| 6 | 2610360176 | 1.49 | 1.80 | |
| Cable Clip | ||||
| 7 | 2615650007 | 2.18 | 2.64 | |
| Nameplate | ||||
| 8 | 2610043666 | 2.18 | 2.64 | |
| Condenser | ||||
| 12 | 2615302683 | 3.71 | 4.49 | |
| Nut | ||||
| 18 | 2610014582 | 1.90 | 2.30 | |
| contour sleeve 1/8" | ||||
| 19 | 2615110480 | 3.44 | 4.16 | |
| Insulator | ||||
| 22 | 2615297373 | 1.32 | 1.60 | |
| tool rack | ||||
| 23 | 2610013891 | 2.18 | 2.64 | |
| Cross Recessed-Head Screw | ||||
| 24 | 2615294035 | 1.49 | 1.80 | |
| Brush-Cover | ||||
| 25 | 2610009826 | 1.90 | 2.30 | |
| Screw | ||||
| 26 | 2610315386 | 1.49 | 1.80 | |
| Button | ||||
| 27 | 2610013890 | 1.32 | 1.60 | |
| Nose | ||||
| 30 | 2610013854 | 2.18 | 2.64 | |
| Chuck Wrench | ||||
| 650 | 2610930692 | 2.40 | 2.90 | |
| Housing Assembly | ||||
| 801 | 2610009845 | 26.62 | 32.21 | |
| Carbon-Brush Set | ||||
| 810 | 2615298790 | 6.53 | 7.90 | |
| shaft lock | ||||
| 817 | 2610009839 | 6.53 | 7.90 | |
