Here you will find all available parts and drawings of the 'Bosch F013028565 ( 285 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

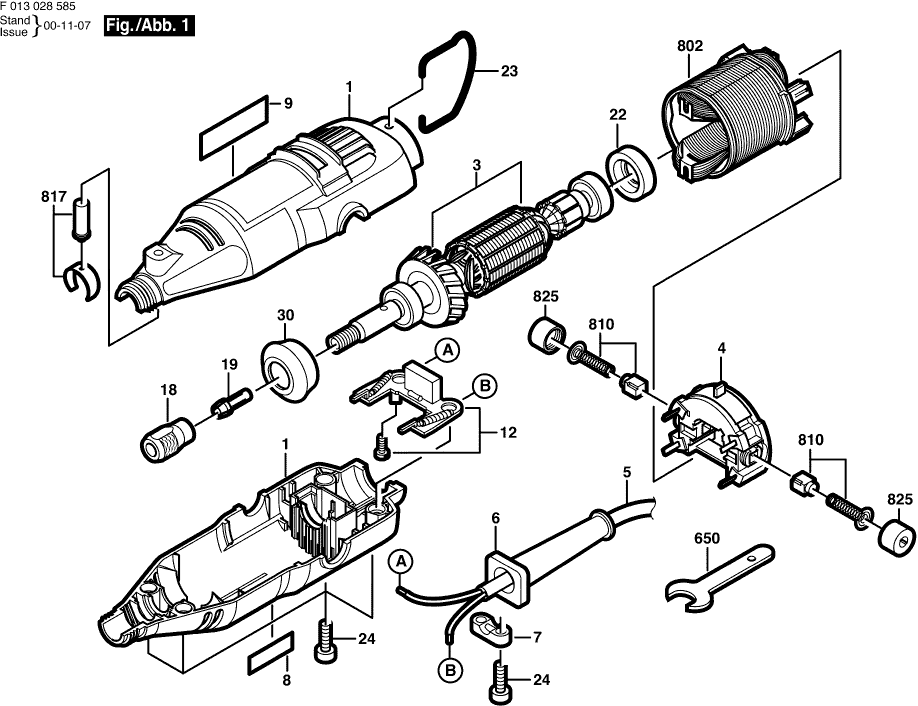

Technical drawing of model Bosch F013028565 ( 285 )
Spare parts list of model Bosch F013028565 ( 285 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Set | ||||
| 1 | 2610925248 | 10.73 | 12.98 | |
| Armature 230V | ||||
| 3 | 2610941201 | 26.84 | 32.48 | |
| On-Off Switch | ||||
| 4 | 2610999100 | 13.93 | 16.86 | |
| Power supply cord EU 230V 2m 2 x 0,75mm H05 VV-F | ||||
| 5 | 2615302694 | 11.88 | 14.37 | |
| Grommet | ||||
| 6 | 2610360176 | 1.18 | 1.43 | |
| Cable Clip | ||||
| 7 | 2615650007 | 1.94 | 2.35 | |
| Marking Plate | ||||
| 8 | 2615298810 | 0.83 | 1.00 | |
| Nameplate | ||||
| 9 | 2615298811 | 0.83 | 1.00 | |
| Condenser | ||||
| 12 | 2615302683 | 3.31 | 4.01 | |
| Nut | ||||
| 18 | 2610014582 | 1.70 | 2.06 | |
| contour sleeve 1/8" | ||||
| 19 | 2615110480 | 2.71 | 3.28 | |
| Insulator | ||||
| 22 | 2615297373 | 1.18 | 1.43 | |
| Pickup Clip | ||||
| 23 | 2615294043 | 2.71 | 3.28 | |
| Cross Recessed-Head Screw | ||||
| 24 | 2615294035 | 1.18 | 1.43 | |
| Retaining snap ring | ||||
| 30 | 2615294028 | 4.70 | 5.69 | |
| Chuck Wrench | ||||
| 650 | 2610930692 | 1.94 | 2.35 | |
| Field 230V | ||||
| 802 | 2615298792 | 12.41 | 15.02 | |
| Carbon-Brush Set | ||||
| 810 | 2615298790 | 5.83 | 7.05 | |
| Parts Set | ||||
| 817 | 2615297356 | 1.94 | 2.35 | |
| Sealing cap | ||||
| 825 | 2615302217 | 3.31 | 4.01 | |
