Here you will find all available parts and drawings of the 'Bosch 0602242101 (2242)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

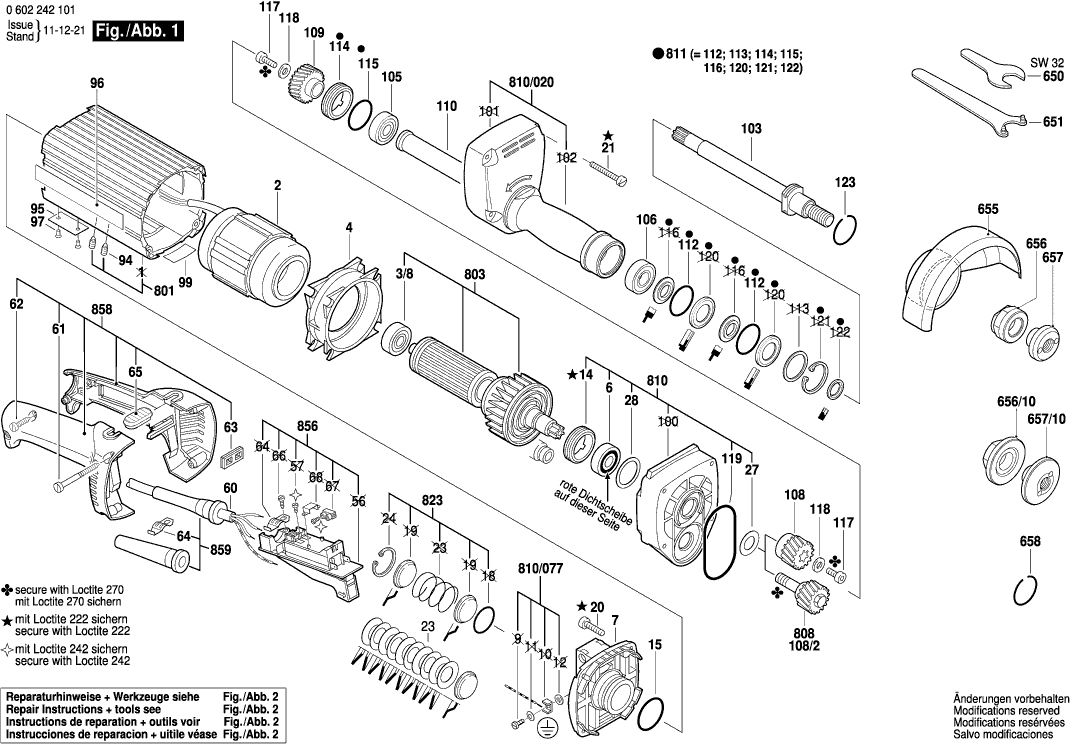

Technical drawing of model Bosch 0602242101 (2242)
Spare parts list of model Bosch 0602242101 (2242)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 265V/200HZ | ||||
| 2 | 3604229081 | 495.00 | 598.95 | |
| groove ball bearing 12x32x10 | ||||
| 3/8 | 3600905119 | 26.62 | 32.21 | |
| Air-Deflector Ring | ||||
| 4 | 3600209008 | 7.32 | 8.86 | |
| groove ball bearing | ||||
| 6 | 3600905095 | 17.60 | 21.30 | |
| Bearing Flange | ||||
| 7 | 3605805009 | 61.93 | 74.94 | |
| O-Ring 38,1x2,2 MM | ||||
| 15 | 1600210037 | 2.18 | 2.64 | |
| Thread-forming tap. Screw | ||||
| 20 | 2914451079 | 2.18 | 2.64 | |
| Thread-forming tap. Screw AM 6x80-ST | ||||
| 21 | 3603410007 | 3.04 | 3.68 | |
| Compression Spring | ||||
| 23 | 3604611019 | 2.18 | 2.64 | |
| Sealing Disc | ||||
| 27 | 3600100049 | 3.04 | 3.68 | |
| Sealing Disc | ||||
| 28 | 3600100048 | 2.52 | 3.05 | |
| Elec. Cable W/Connection | ||||
| 60 | 3604462017 | 55.56 | 67.23 | |
| Tapping Screw | ||||
| 61 | 1603435024 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 62 | 2910211020 | 2.08 | 2.52 | |
| Cable routing | ||||
| 63 | 1602388027 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 64 | 3601303004 | 5.27 | 6.38 | |
| Fastening Clamp | ||||
| 64 | 3601303002 | 2.18 | 2.64 | |
| Storage Ledge | ||||
| 65 | 1602388029 | 1.49 | 1.80 | |
| Set screw DIN 915-M4x6-45H | ||||
| 94 | 2912081116 | 2.18 | 2.64 | |
| Nameplate | ||||
| 95 | 3601106053 | 4.58 | 5.54 | |
| Manufacturer's nameplate | ||||
| 96 | 3601110047 | 2.52 | 3.05 | |
| Grooved Nail DIN 1476-2x5 MM | ||||
| 97 | 3603133001 | 2.18 | 2.64 | |
| Reference Plate | ||||
| 99 | 3601119236 | 3.44 | 4.16 | |
| Grinding Spindle | ||||
| 103 | 3606120005 | 189.28 | 229.03 | |
| groove ball bearing | ||||
| 105 | 3600905060 | 17.60 | 21.30 | |
| groove ball bearing | ||||
| 106 | 3600905058 | 17.60 | 21.30 | |
| Toothed Gear Z=29 | ||||
| 108 | 3606300085 | 82.63 | 99.98 | |
| Toothed Gear Z=40 | ||||
| 109 | 3606300086 | 91.33 | 110.51 | |
| Spacer Sleeve | ||||
| 110 | 3600700055 | 30.08 | 36.40 | |
| O-Ring 32,0x1,5 MM | ||||
| 112 | 3600210057 | 2.18 | 2.64 | |
| Threaded Ring | ||||
| 114 | 3603344024 | 13.90 | 16.82 | |
| O-Ring 33,0x2,5 MM | ||||
| 115 | 3600210050 | 2.18 | 2.64 | |
| Hex Socket Head Cap Screw | ||||
| 117 | 2910141201 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 118 | 3600100043 | 3.04 | 3.68 | |
| O-Ring 82,27x1,78 MM | ||||
| 119 | 3600210052 | 1.90 | 2.30 | |
| Retaining ring 24x2 DIN9045-24 | ||||
| 123 | 2916609112 | 2.18 | 2.64 | |
| Single-Head Eng. Wrench SW32 | ||||
| 650 | 2607950021 | 26.62 | 32.21 | |
| Pin-Type Face-Wrench | ||||
| 651 | 2607950022 | 30.08 | 36.40 | |
| Protective Cover Ø100 MM | ||||
| 655 | 3605510032 | 189.28 | 229.03 | |
| Clamping-Flange | ||||
| 656 | 3605703089 | 67.98 | 82.26 | |
| Clamping-Flange | ||||
| 656/10 | 3605703070 | 102.63 | 124.18 | |
| Clamping Ring | ||||
| 657 | 3605703074 | 20.39 | 24.67 | |
| Clamping Ring | ||||
| 657/10 | 3605703066 | 23.75 | 28.74 | |
| Motor Housing GR.85 | ||||
| 801 | 3605108159 | 234.56 | 283.82 | |
| Rotor | ||||
| 803 | 3604080037 | 435.14 | 526.52 | |
| Bearing Flange | ||||
| 810 | 3607031292 | 166.62 | 201.61 | |
| Spindle Bearing | ||||
| 810/020 | 3607031289 | 495.00 | 598.95 | |
| Set Of Earthing Material | ||||
| 810/077 | 3607031299 | 7.32 | 8.86 | |
| Fastening parts kit | ||||
| 811 | 3607031288 | 126.98 | 153.65 | |
| Spring set | ||||
| 823 | 3607031296 | 13.90 | 16.82 | |
| Switch Kit | ||||
| 856 | 3607031298 | 91.33 | 110.51 | |
| Handle | ||||
| 858 | 3607031297 | 37.50 | 45.38 | |
| Grommet | ||||
| 859 | 3607031550 | 11.02 | 13.33 | |
