Here you will find all available parts and drawings of the 'Bosch 0602241101 ( 2241 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

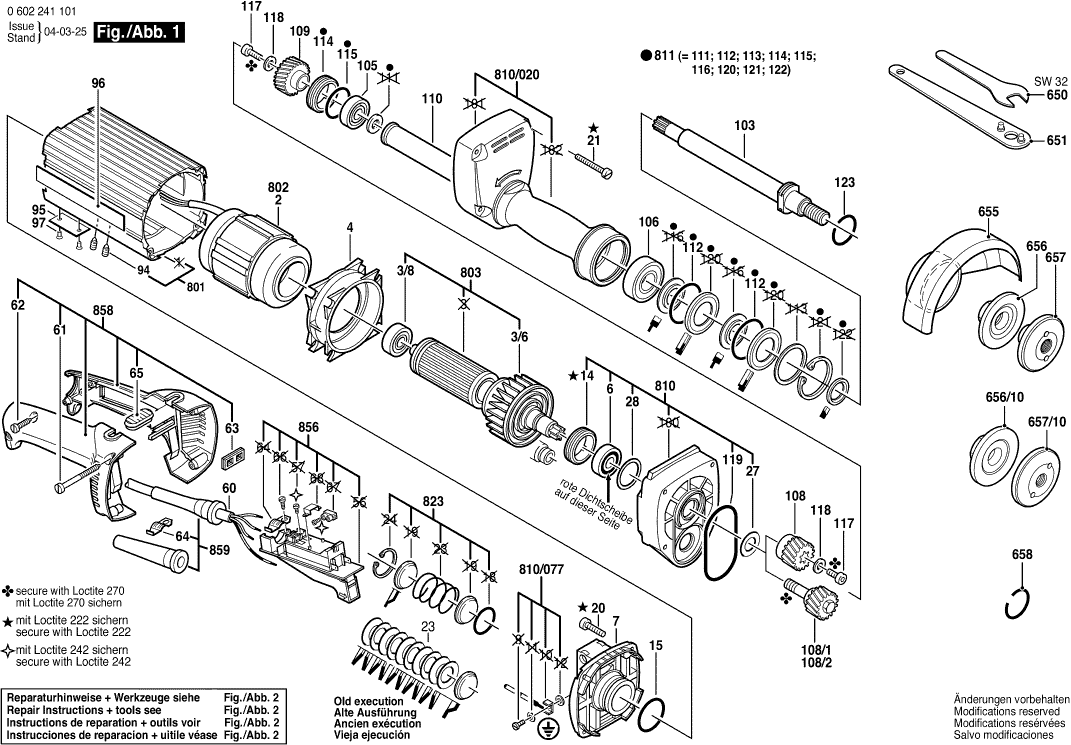

Technical drawing of model Bosch 0602241101 ( 2241 )

Spare parts list of model Bosch 0602241101 ( 2241 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Stator 265V/200HZ
2 3604229057 493.58 597.23
groove ball bearing 12x32x10
3/8 3600905119 23.75 28.74
Air-Deflector Ring
4 3600209006 4.70 5.69
groove ball bearing
6 3600905095 15.71 19.01
Bearing Flange
7 3605805009 55.25 66.85
O-Ring 38,1x2,2 MM
15 1600210037 1.94 2.35
Thread-forming tap. Screw
20 2914451079 1.18 1.43
Thread-forming tap. Screw AM 6x80-ST
21 3603410007 2.71 3.28
Compression Spring
23 3604611019 1.94 2.35
Sealing Disc
27 3600100049 2.71 3.28
Sealing Disc
28 3600100048 2.24 2.71
Elec. Cable W/Connection
60 3604462017 49.56 59.97
Tapping Screw BZ4,8x63 MM
61 1603435008 1.18 1.43
Tapping Screw DIN 7971-BZ3,9x19
62 2910211020 1.70 2.06
Cable routing
63 1602388027 1.94 2.35
Fastening Clamp
64 3601303004 4.70 5.69
Fastening Clamp
64 3601303002 1.94 2.35
Storage Ledge BLACK
65 1602388029 1.18 1.43
Set screw DIN 915-M4x6-45H
94 2912081116 1.94 2.35
Nameplate
95 3601106053 4.10 4.96
Manufacturer's nameplate
96 3601110047 2.24 2.71
Grooved Nail DIN 1476-2x5 MM
97 3603133001 1.94 2.35
Grinding Spindle
103 3606120009 209.26 253.20
groove ball bearing
105 3600905060 15.71 19.01
groove ball bearing
106 3600905057 18.19 22.01
Toothed Gear Z=25
108 3606300094 91.56 110.79
Toothed Gear Z=44
109 3606300093 101.94 123.35
Spacer Sleeve
110 3600700056 36.85 44.59
O-Ring 43,0x2,0 MM
112 3600210058 1.18 1.43
Threaded Ring
114 3603344024 12.41 15.02
O-Ring 33,0x2,5 MM
115 3600210050 1.94 2.35
Hex Socket Head Cap Screw DIN 912-M6x20-8.8
117 2910141201 1.94 2.35
Plain Washer
118 3600100043 2.71 3.28
O-Ring 79,0x1,78 MM
119 1600210033 1.18 1.43
Retaining ring 24x2 DIN9045-24
123 2916609112 1.94 2.35
Single-Head Eng. Wrench SW32
650 3607950010 23.75 28.74
Pin-Type Face-Wrench
651 F000632033 1.94 2.35
Protective Cover Ø 125 MM
655 3605510030 23.75 28.74
Clamping-Flange
656 3605703112 44.82 54.23
No longer available, no replacement
656/10 3605703071
Clamping Ring
657 3605703077 33.45 40.47
Clamping Ring
657/10 3605703075 23.75 28.74
Motor Housing GR.88
801 3605108160 168.86 204.32
Rotor
803 3604080025 271.34 328.32
Bearing Flange
810 3607031292 148.65 179.87
Spindle Bearing
810/020 3607031291 342.01 413.83
Set Of Earthing Material
810/077 3607031299 6.54 7.91
Fastening parts kit
811 3607031290 113.29 137.08
Spring set
823 3607031296 12.41 15.02
Switch Kit
856 3607031298 81.47 98.58
Handle
858 3607031297 33.45 40.47
Grommet
859 3607031550 10.73 12.98
