Here you will find all available parts and drawings of the 'Bosch 0603386803 ( PSB1000RPE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

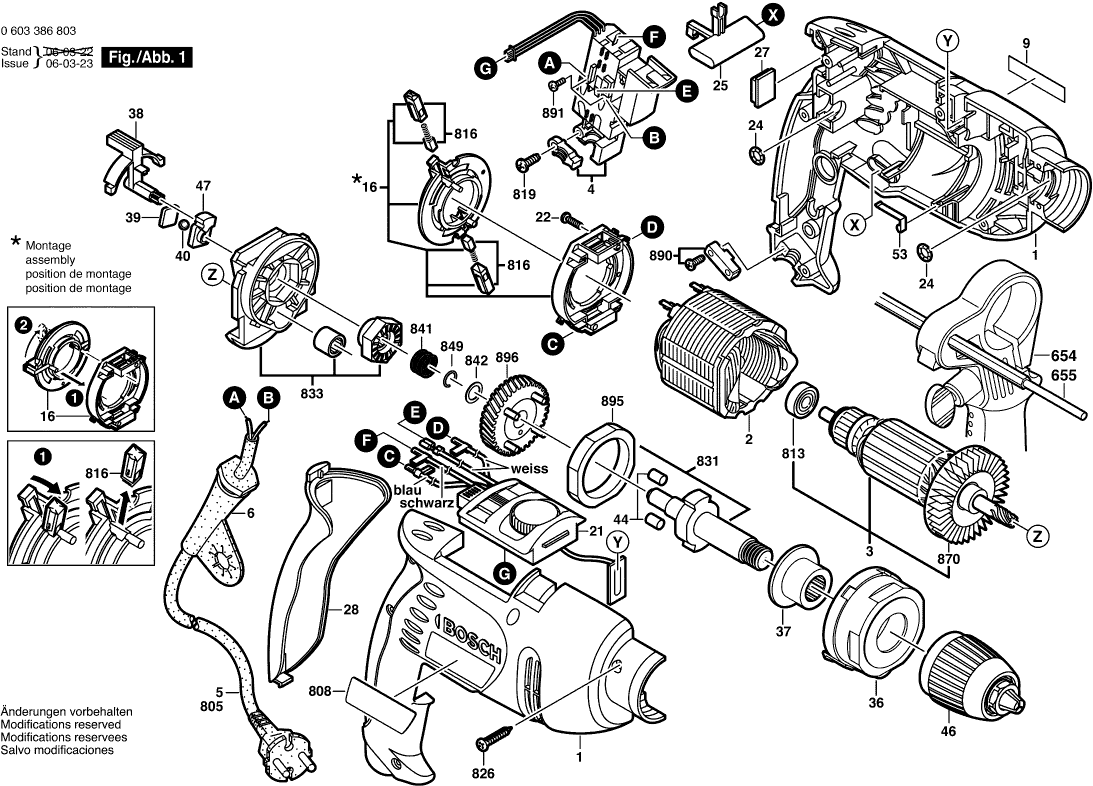

Technical drawing of model Bosch 0603386803 ( PSB1000RPE )
Spare parts list of model Bosch 0603386803 ( PSB1000RPE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104745 | 10.73 | 12.98 | |
| Field 220-240V | ||||
| 2 | 2604220692 | 18.19 | 22.01 | |
| Armature 230-240V | ||||
| 3 | 2604011296 | 55.25 | 66.85 | |
| No longer available, no replacement | ||||
| 4 | 2607200501 | |||
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate PSB 100 RPE | ||||
| 9 | 2601115230 | 2.71 | 3.28 | |
| Manufacturer's nameplate PSB 10000 RPE | ||||
| 9 | 2601116231 | 2.71 | 3.28 | |
| Manufacturer's nameplate PSB 1000 X-CEL | ||||
| 9 | 2601115576 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSB 1000 RPE | ||||
| 9 | 2601117835 | 1.70 | 2.06 | |
| Brush Plate | ||||
| 16 | 2604337104 | 9.53 | 11.53 | |
| Speed governor | ||||
| 21 | 2607230073 | 36.85 | 44.59 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| O-Ring 5,0x1,5 MM | ||||
| 24 | 1900210000 | 1.18 | 1.43 | |
| Change-Over Switch RED | ||||
| 25 | 2602098008 | 0.83 | 1.00 | |
| Damping Element | ||||
| 27 | 2603239024 | 0.83 | 1.00 | |
| Handle Cover BLACK | ||||
| 28 | 2608040177 | 4.10 | 4.96 | |
| Gear Cover | ||||
| 36 | 2605808084 | 2.71 | 3.28 | |
| Flanged Bearing | ||||
| 37 | 2605805009 | 10.73 | 12.98 | |
| Indexing Disk | ||||
| 38 | 2601990027 | 1.18 | 1.43 | |
| Pressure Plate | ||||
| 39 | 2601074004 | 0.83 | 1.00 | |
| Ball DIN 5401-5 G28 | ||||
| 40 | 1903230009 | 0.83 | 1.00 | |
| Roller Body | ||||
| 44 | 2602329038 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 46 | 2608572173 | |||
| Frame | ||||
| 47 | 2608040120 | 1.94 | 2.35 | |
| Contact Strap | ||||
| 53 | 2601329043 | 1.94 | 2.35 | |
| No information available, not orderable | ||||
| 210 | 2601116284 | |||
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 805 | 1607000388 | 9.53 | 11.53 | |
| Marking Plate | ||||
| 808 | 2601117937 | 3.31 | 4.01 | |
| Ball Bearing 7x19x6 | ||||
| 813 | 2600905032 | 4.10 | 4.96 | |
| Carbon-Brush Set | ||||
| 816 | 2609160125 | 5.33 | 6.45 | |
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 819 | 2910611006 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 826 | 2910611020 | 1.18 | 1.43 | |
| Drilling Spindle 1/2" | ||||
| 831 | 2606135931 | 13.93 | 16.86 | |
| Bearing Bracket | ||||
| 833 | 2605807937 | 15.71 | 19.01 | |
| Compression Spring | ||||
| 841 | 2604616006 | 1.18 | 1.43 | |
| Shim 0,3 MM | ||||
| 842 | 2600101047 | 1.18 | 1.43 | |
| Retaining ring DIN 7993-A8 | ||||
| 849 | 2916540005 | 0.83 | 1.00 | |
| Fan | ||||
| 870 | 2606610029 | 1.94 | 2.35 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
| Retaining snap ring | ||||
| 895 | 2600290044 | 2.24 | 2.71 | |
| Carrier 1,0 M | ||||
| 896 | 2606320083 | 11.88 | 14.37 | |
