Here you will find all available parts and drawings of the 'Bosch 0603295703 ( PBH2R )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

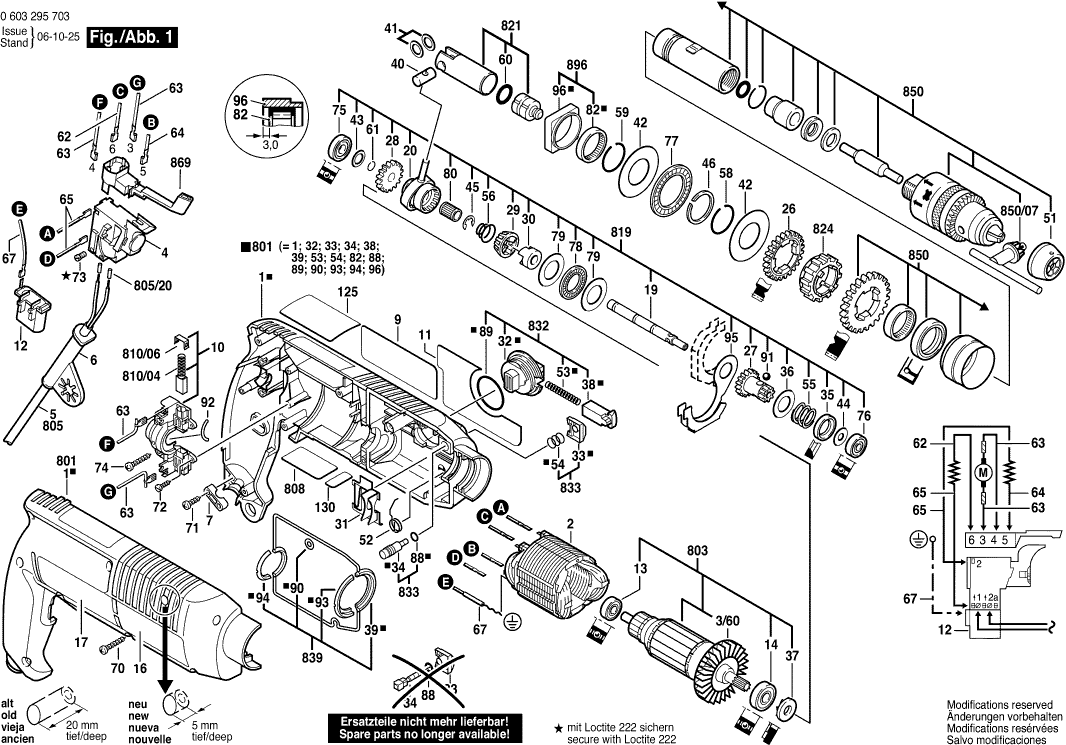

Technical drawing of model Bosch 0603295703 ( PBH2R )

Spare parts list of model Bosch 0603295703 ( PBH2R )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing GREEN
1 1617000800 67.25 81.37
Field 220-240V
2 1604220254 18.19 22.01
Fan
3/60 2606610029 1.94 2.35
No longer available, no replacement
4 2607200404
Grommet Ø6,9 MM
6 2600707059 2.24 2.71
Grommet Ø11,6-Ø12,5x84 MM
6 2600707060 1.94 2.35
Grommet Ø8,8 MM
6 2600707061 1.94 2.35
Cable Clip
7 1611035005 1.70 2.06
Manufacturer's nameplate
9 1611110611 2.24 2.71
No longer available, no replacement
10 2605807060
Manufacturer's nameplate
11 1611110913 1.94 2.35
Suppression Filter
12 1607328040 5.33 6.45
groove ball bearing 7x19x6
13 1610905032 4.10 4.96
groove ball bearing 9x24x7
14 1610905017 10.73 12.98
Reference Plate
16 1611110613 2.24 2.71
Manufacturer's nameplate
17 1611110614 2.24 2.71
Jack Shaft
19 1613022027 8.45 10.22
Drive bearing
20 1615819019 33.45 40.47
Cylindrical Gear Z=43
26 1616317604 9.53 11.53
Cylindrical Gear Z=11/22
27 1616317605 10.73 12.98
Cylindrical Gear Z=31
28 1616317606 2.71 3.28
Clutch Ring
29 1616409008 3.31 4.01
Collar
30 1616409009 2.71 3.28
Control Fork
31 1611329015 12.41 15.02
Backup ring
35 1610250008 2.71 3.28
Supporting Disc 1,0 MM THICK
36 1610101626 1.18 1.43
Sealing disk
37 1610190015 2.24 2.71
Catch Slide
38 1613231004 1.18 1.43
Piston Pin
40 1613103006 2.24 2.71
Shim washer 1,2 MM THICK
41 1610100608 1.18 1.43
Support Disc 1,0 MM THICK
42 1610102631 2.24 2.71
Supporting Disc 1,0 MM THICK
43 1610100610 1.70 2.06
Shim washer 1,0 MM THICK
44 1610100611 1.18 1.43
Locking Washer DIN 6799-7-FSt
45 2916080910 1.70 2.06
Retaining ring
46 1610116005 1.18 1.43
No longer available, no replacement
51 1610508020
Coiled Spring
52 1614651015 1.70 2.06
Compression Spring
53 1614611004 0.83 1.00
Compression Spring
55 1614603002 1.94 2.35
Compression Spring
56 1614643005 1.18 1.43
Retaining ring
58 1614601013 1.18 1.43
Retaining ring
59 1614601014 1.18 1.43
No longer available, no replacement
60 1610210086
Retaining ring
61 1614601015 1.18 1.43
Connecting Cable L=115MM BLUE
62 2604448096 1.18 1.43
Connecting Cable L=85 MM WHITE
63 2604448147 0.83 1.00
Connecting Cable L=88 MM WHITE
64 2604448034 1.18 1.43
No longer available, no replacement
65 2604448060
Tapping Screw DIN 7981-ST3,9x25-C-Z
70 2912401022 0.83 1.00
Tapping Screw DIN7981-ST3,9x16-C-Z
71 2912401019 0.83 1.00
Tapping Screw DIN7981-ST2,9x13-C-Z
72 2912401006 0.83 1.00
Socket head cap screw M3x6,5-4.8
73 2603410001 1.18 1.43
Tapping Screw DIN7981-ST3,9x22-C-Z
74 2912401021 0.83 1.00
No longer available, no replacement
75 1900900228
groove ball bearing 6x19x6
76 1610900024 5.33 6.45
No longer available, no replacement
77 1610920012
Thrust Needle Rim
78 1610920001 2.71 3.28
Thrust Bearing Disc
79 1610101608 1.70 2.06
Needle-Roller Assembly
80 1610913008 3.31 4.01
Needle bearing
82 1610910075 2.71 3.28
O-Ring 4,0x1,5 MM
88 1610210043 1.18 1.43
O-Ring 25.0x2.5 MM
89 1610210112 1.94 2.35
Ball DIN 5401-6 G28
91 1903230011 1.94 2.35
Damping rubber
92 1610026001 0.83 1.00
Guide Plate
95 1611321013 2.71 3.28
Bearing Flange
96 1615719023 20.42 24.71
Manufacturer's nameplate
125 1611110615 2.24 2.71
No longer available, no replacement
130 1601110265
No longer available, no replacement
703 1615439003
Rubber Bushing Ø5-7 MM
712/30 1610312001 0.83 1.00
Rubber Bushing Ø8-10 MM
712/651 1610312002 0.83 1.00
Auxiliary Handle
720 1619PB4323 7.58 9.17
Auxiliary Handle Ø 43 MM
720 1612025034 0.83 1.00
Hex Nut DIN 934-M6-8-A
720/20 2915011007 0.83 1.00
Wing Screw M6x(15)55
720/30 1613480007 1.18 1.43
No longer available, no replacement
720/50 2608040014
Wing Screw M6x20 MM
720/60 1613480008 1.18 1.43
No longer available, no replacement
750 2605438291
No longer available, no replacement
752 1613001005
No information available, not orderable
753 1618596166
No longer available, no replacement
754 2607000122
Motor Housing GREEN
801 1617000800 67.25 81.37
Armature With Fan 230V
803 1614010119 73.72 89.20
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
End Splice DIN 46 228-A1-6
805/20 1900452012 0.83 1.00
Nameplate
808 160111A3H5 1.94 2.35
No longer available, no replacement
810/04 1617014136
Ratchet Cap
810/06 2601322013 1.18 1.43
Ratchet Cap
810/06 2601322017 1.18 1.43
Jack Shaft
819 1617000986 91.56 110.79
Parts Set
821 1617000187 18.19 22.01
No longer available, no replacement
824 1610290020
Parts Set
832 1617000191 4.10 4.96
Parts Set
833 1617000268 3.31 4.01
No longer available, no replacement
839 1617000267
Key Chuck Ø1,5-Ø13MM,M22x1MM
850 1617000961 148.65 179.87
Chuck Wrench SG2
850/07 2607950007 5.33 6.45
Change-Over Switch
869 2607200231 12.41 15.02
Bearing Flange
896 1617000802 29.75 36.00
