Here you will find all available parts and drawings of the 'Bosch 3601G9C000 ( GWS9-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

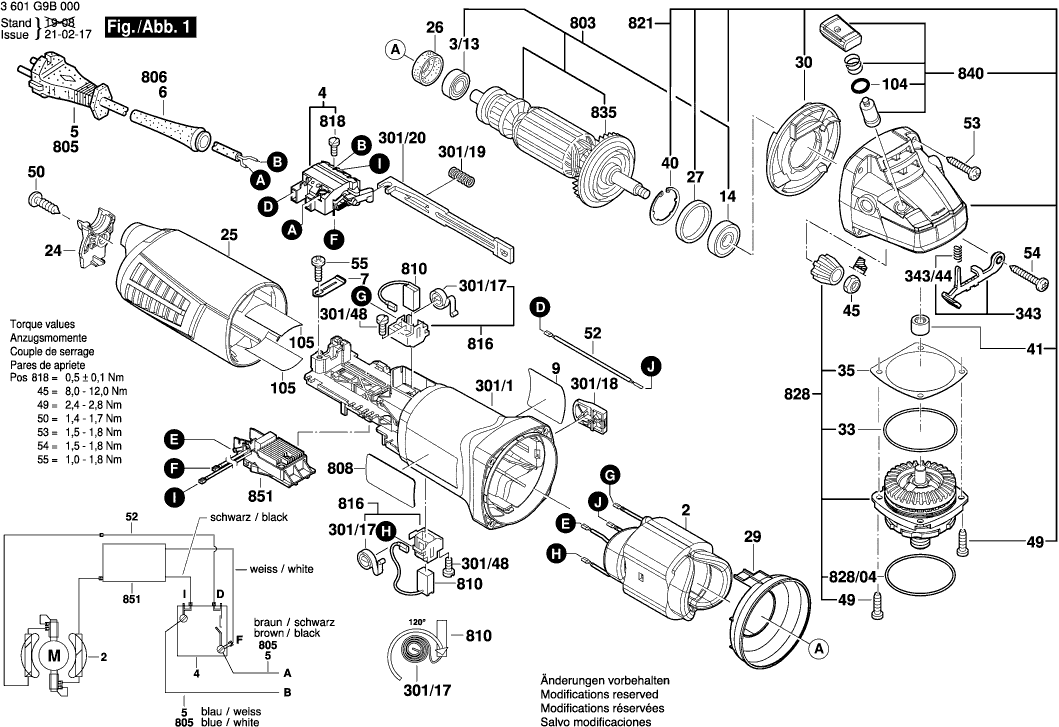

Technical drawing of model Bosch 3601G9C000 ( GWS9-125 )

Spare parts list of model Bosch 3601G9C000 ( GWS9-125 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field
2 1607000F04 23.75 28.74
Field
2 1604220470 22.36 27.06
Ball Bearing 7x19x6
3/13 2600905032 4.10 4.96
Switch
4 1607200199 12.41 15.02
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate
9 1601118L03 1.70 2.06
groove ball bearing 8x22x7
14 1600905032 4.70 5.69
Cover
24 1605500279 2.24 2.71
Housing Cover
25 1605500278 6.54 7.91
Intermediate Ring
26 1600502023 1.70 2.06
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1600591025 1.94 2.35
Air Distributor
30 1600591050 1.94 2.35
Grinding Spindle
32 1607000D6A 5.83 7.05
O-Ring 46,0x1,1 MM
33 1600210035 1.18 1.43
Shim 0,15 MM THICK
35 1600136020 2.71 3.28
Shim 0,1 MM THICK
35 1600136013 1.94 2.35
Shim 0,2 MM THICK
35 1600136014 1.94 2.35
Shim 0,3 MM THICK
35 1600136015 1.94 2.35
Retaining clip
40 1600119011 1.70 2.06
Plain bearing
41 1600200029 2.24 2.71
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Thread-forming tap. Screw M4x16
49 2914491410 0.83 1.00
Torx Oval-Head Screw 4x20
50 2603490023 0.83 1.00
Connecting Cable L=90 MM WHITE
52 1604448013 1.70 2.06
Torx Oval-Head Screw
53 1603435078 0.83 1.00
Torx Oval-Head Screw 4x30
54 1603414026 0.83 1.00
Torx Oval-Head Screw 4x12
55 2603490021 0.83 1.00
No information available, not orderable
80 3600150021
O-Ring 4,5x1,0 MM BLUE
104 1600210044 0.83 1.00
Insulating Plate
105 1601008005 2.24 2.71
Motor Housing
301/1 1605108287 7.58 9.17
Spiral Spring
301/17 1604652021 0.83 1.00
Switch Handle
301/18 1602026088 0.83 1.00
Compression Spring
301/19 1604611026 0.83 1.00
Adjusting Slide BLACK
301/20 1602319010 1.18 1.43
Lens Head Screw 3x10 ST
301/48 1613435034 0.83 1.00
Catch Lever
343 1607000742 5.83 7.05
Compression Spring
343/44 1604611042 1.18 1.43
Auxiliary Handle
650/1 16020250A0 8.45 10.22
Round Nut M14
650/2 1603345043 6.54 7.91
Pin-Type Face-Wrench
650/3 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
650/5 2605703014 4.10 4.96
O-Ring 20,35x1,78 MM
650/5/2 1600210039 1.70 2.06
Protective Cover
651 1600A025XR 7.96 9.63
Armature With Fan 230V
803 1607000V49 40.61 49.14
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000392 15.71 19.01
Grommet
806 1600703043 1.94 2.35
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 1607000V53 10.73 12.98
Brush Holder
816 1607000V54 2.24 2.71
Pan head screw DIN 85-AM3x6-CUZN
818 2910110048 0.83 1.00
Gear Housing
821 1607000V55 26.84 32.48
No information available, not orderable
828 1607000D6C
O-Ring 47,0x1,5 MM
828/04 3600210109 1.70 2.06
Fan
835 1606610132 1.70 2.06
Gear Unit
838 1607000D4Y 12.41 15.02
Push-Button
840 1607000V41 3.31 4.01
Speed governor
851 16072335CG 49.56 59.97
Protective Cover
891 1600A025XP 7.58 9.17
Grease Tube 225 ML
892 1605430003 29.75 36.00
Grease Tube 225 ML
893 1615430020 15.71 19.01
Fast Locking Flange
896 1600A016PP 36.85 44.59
