Here you will find all available parts and drawings of the 'Bosch 3601H60300 ( GSR18V-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

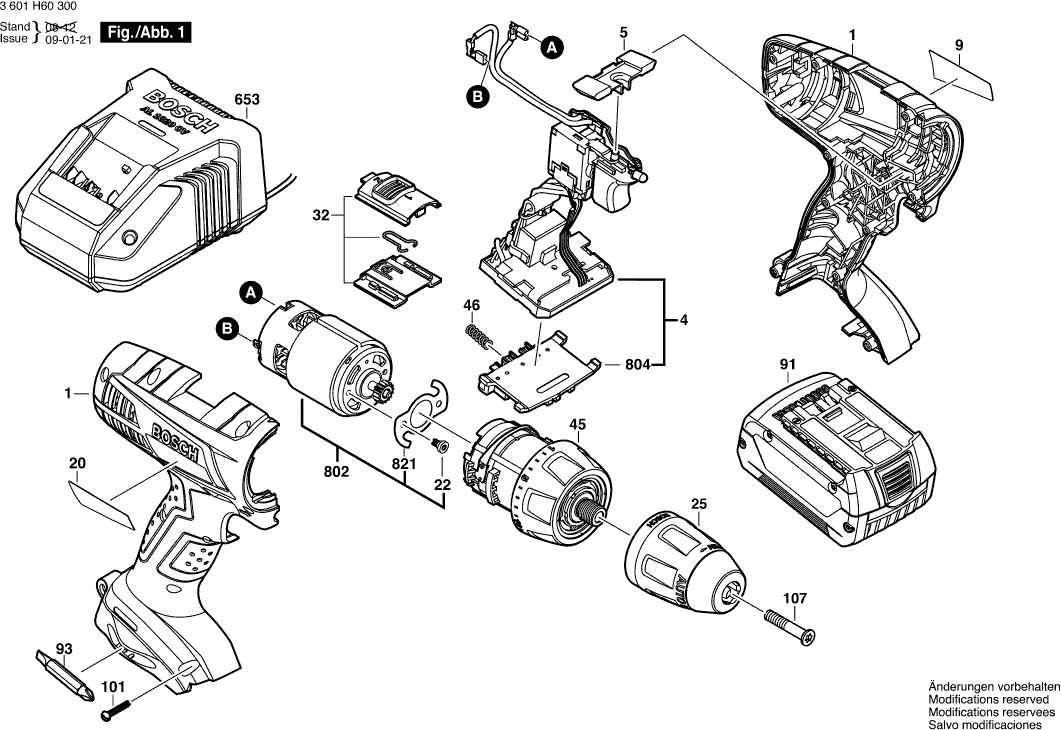

Technical drawing of model Bosch 3601H60300 ( GSR18V-LI )
Spare parts list of model Bosch 3601H60300 ( GSR18V-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605105134 | 20.42 | 24.71 | |
| Electronics Module | ||||
| 4 | 1607233302 | 81.47 | 98.58 | |
| Adjusting Slide | ||||
| 5 | 2601099188 | 1.94 | 2.35 | |
| Manufacturer's nameplate GSR 18 V-LI | ||||
| 9 | 2601115607 | 1.94 | 2.35 | |
| Nameplate | ||||
| 20 | 2601115608 | 1.94 | 2.35 | |
| Screw | ||||
| 22 | 2609110634 | 0.83 | 1.00 | |
| Keyless Chuck 13 MM | ||||
| 25 | 2608572251 | 55.25 | 66.85 | |
| Adjusting Slide RED | ||||
| 32 | 2601099189 | 4.10 | 4.96 | |
| Planetary Gear Train | ||||
| 45 | 2606200263 | 67.25 | 81.37 | |
| Compression Spring | ||||
| 46 | 2604690055 | 0.83 | 1.00 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 91 | 1607A350M0 | 91.56 | 110.79 | |
| Battery Pack 18V 3.0Ah Li SCM | ||||
| 91 | 1607A350B2 | 91.56 | 110.79 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 91.56 | 110.79 | |
| Battery Pack GBA 18V 1.5Ah | ||||
| 91 | 1607A350JR | 55.25 | 66.85 | |
| Battery Pack | ||||
| 91 | 1607A350BZ | 52.03 | 62.96 | |
| Screwdriver Blade 6 MM | ||||
| 93 | 1609200147 | 2.71 | 3.28 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Pan head screw M 6x30 | ||||
| 107 | 2609110635 | 1.18 | 1.43 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Fast Charger AUS 240/10,8-18V, 30 MIN | ||||
| 653 | 2607225325 | 113.29 | 137.08 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 63.33 | 76.63 | |
| Fast Charger GB 230/10,8-18V, 1h | ||||
| 653 | 2607225425 | 60.65 | 73.39 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 653 | 2607226281 | 55.25 | 66.85 | |
| DC motor 18V | ||||
| 802 | 2607022832 | 73.72 | 89.20 | |
| Contact retainer | ||||
| 804 | 1609280478 | 9.53 | 11.53 | |
| Tab Washer | ||||
| 821 | 2609110633 | 1.18 | 1.43 | |
