Here you will find all available parts and drawings of the 'Bosch 3600HB9207 ( ADVANCEDROTAK650 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

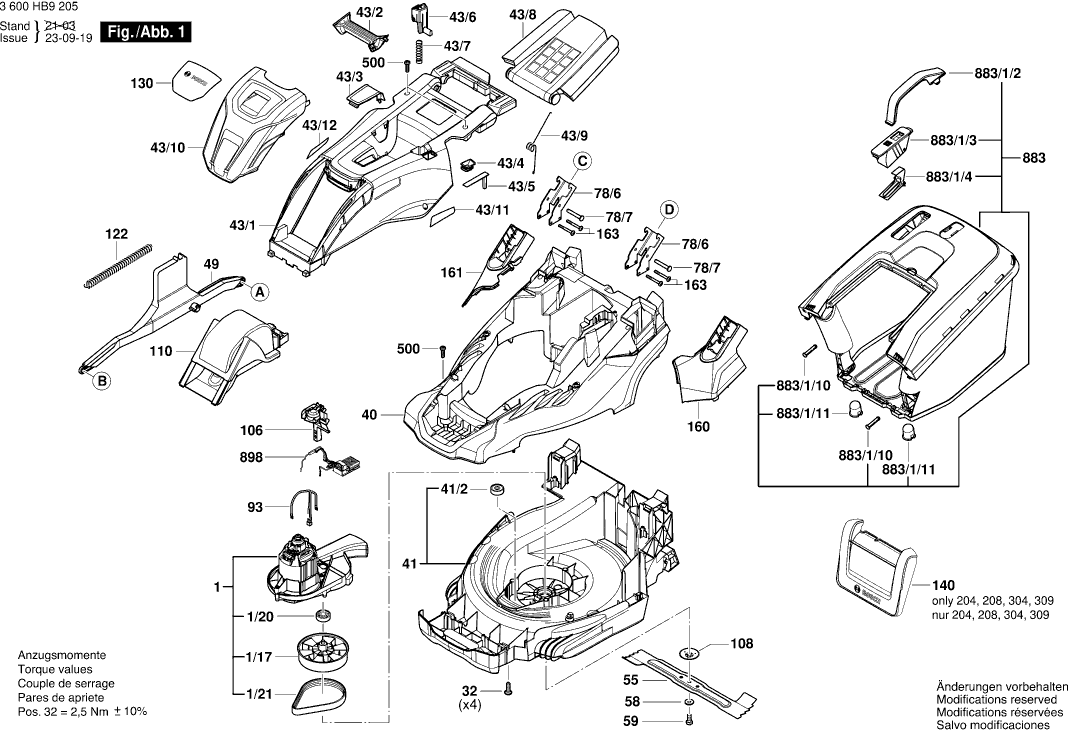

Technical drawing of model Bosch 3600HB9207 ( ADVANCEDROTAK650 )
Spare parts list of model Bosch 3600HB9207 ( ADVANCEDROTAK650 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor | ||||
| 1 | F016L90455 | 148.65 | 179.87 | |
| Drive Shaft | ||||
| 1/17 | F016L65108 | 10.73 | 12.98 | |
| Bearing | ||||
| 1/20 | F016L64594 | 2.24 | 2.71 | |
| Drive Belt | ||||
| 1/21 | F016L65109 | 12.41 | 15.02 | |
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 0.83 | 1.00 | |
| Mower deck 42/46 | ||||
| 40 | F016L90982 | 23.75 | 28.74 | |
| Housing 42 cm | ||||
| 41 | F016L90443 | 55.25 | 66.85 | |
| Bearing 6003 | ||||
| 41/2 | F016L64387 | 4.10 | 4.96 | |
| Motor Hood | ||||
| 43/1 | F016L90017 | 13.93 | 16.86 | |
| grille | ||||
| 43/10 | F016L90400 | 6.54 | 7.91 | |
| Sticker ProSilence L | ||||
| 43/11 | F016L90076 | 1.94 | 2.35 | |
| Sticker PowerDrive L | ||||
| 43/11 | 160111C3G3 | 1.94 | 2.35 | |
| Sticker PowerDrive R | ||||
| 43/12 | 160111C3G4 | 1.94 | 2.35 | |
| Sticker ProSilence R | ||||
| 43/12 | F016L90077 | 1.94 | 2.35 | |
| Carrying Handle | ||||
| 43/2 | F016L90018 | 1.18 | 1.43 | |
| Cover | ||||
| 43/3 | F016L90081 | 0.83 | 1.00 | |
| Transparent Cover | ||||
| 43/4 | F016L90432 | 1.18 | 1.43 | |
| Indicator | ||||
| 43/5 | F016L90433 | 2.71 | 3.28 | |
| Button | ||||
| 43/6 | 1600A022AC | 2.30 | 2.78 | |
| Button Spring | ||||
| 43/7 | F016L91168 | 0.83 | 1.00 | |
| Guard Flap | ||||
| 43/8 | F016L90022 | 5.83 | 7.05 | |
| Spring | ||||
| 43/9 | F016L90868 | 1.18 | 1.43 | |
| Linkage part | ||||
| 49 | F016L90028 | 7.58 | 9.17 | |
| Axle | ||||
| 52/1 | F016L90007 | 4.10 | 4.96 | |
| Link Piece | ||||
| 52/2 | F016L90033 | 1.18 | 1.43 | |
| Link Piece | ||||
| 52/3 | F016L90037 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 52/4 | F016L68095 | 1.18 | 1.43 | |
| Wheel ear | ||||
| 52/805 | F016104422 | 14.00 | 16.94 | |
| Wheel | ||||
| 52/805 | F016105108 | 6.54 | 7.91 | |
| Cutter Blade 40 cm | ||||
| 55 | F016L69572 | 15.71 | 19.01 | |
| Locking Washer 1/2" | ||||
| 58 | F016L18181 | 1.70 | 2.06 | |
| Hex Screw | ||||
| 59 | F04N004003 | 0.83 | 1.00 | |
| Axle 42/46 | ||||
| 61/1 | F016L90006 | 4.10 | 4.96 | |
| Link Piece | ||||
| 61/2 | F016L90032 | 1.18 | 1.43 | |
| Spacer | ||||
| 61/3 | F016L90036 | 0.83 | 1.00 | |
| Ratchet Cap | ||||
| 61/4 | F016L68095 | 1.18 | 1.43 | |
| Wheel | ||||
| 61/805 | F016105369 | 6.54 | 7.91 | |
| Wheel | ||||
| 61/805 | F016105111 | 5.33 | 6.45 | |
| Handle | ||||
| 75/1/1 | F016L90012 | 12.41 | 15.02 | |
| Bushing | ||||
| 75/1/2 | F016L90064 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 75/10 | F016L90074 | 0.83 | 1.00 | |
| Button | ||||
| 75/11 | F016L91039 | 1.70 | 2.06 | |
| Screw M5x8 Csk Hd. | ||||
| 75/14 | F016L36542 | 1.94 | 2.35 | |
| wiring unit | ||||
| 75/3 | F016L90703 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 75/3/1 | F016L67217 | |||
| Terminal Block | ||||
| 75/3/2 | F016L90781 | 10.73 | 12.98 | |
| Connection Cable | ||||
| 75/3/3 | F016L90709 | 13.93 | 16.86 | |
| No information available, not orderable | ||||
| 75/3/4 | F016L67490 | |||
| Sleeve | ||||
| 75/5 | F016L90070 | 1.70 | 2.06 | |
| Handle | ||||
| 75/6 | F016L90066 | 4.10 | 4.96 | |
| Handle | ||||
| 75/7 | F016L90067 | 4.70 | 5.69 | |
| Locking Pin | ||||
| 75/8 | F016L90068 | 1.18 | 1.43 | |
| Switch assembly | ||||
| 75/804 | F016105448 | 23.75 | 28.74 | |
| Lever | ||||
| 75/9 | F016L90543 | 0.83 | 1.00 | |
| Handle Bar | ||||
| 78/1 | F016L90013 | 9.53 | 11.53 | |
| release mechanism | ||||
| 78/2 | F016L90063 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 78/3 | F016L90841 | 0.83 | 1.00 | |
| release mechanism | ||||
| 78/4 | F016L90062 | 1.94 | 2.35 | |
| Bracket | ||||
| 78/6 | F016L90082 | 4.70 | 5.69 | |
| Pivot Pin | ||||
| 78/7 | F016L90014 | 0.83 | 1.00 | |
| Thermal protector | ||||
| 93 | F016L90717 | 5.83 | 7.05 | |
| Wire Guide | ||||
| 106 | F016L90419 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 108 | F016L67627 | |||
| Baffle | ||||
| 110 | F016L90086 | 7.58 | 9.17 | |
| Clip | ||||
| 121 | F016L91066 | 0.83 | 1.00 | |
| Spring | ||||
| 122 | F016L90072 | 2.24 | 2.71 | |
| front cover P2 BLACK | ||||
| 130 | F016L90878 | 5.33 | 6.45 | |
| Cover Ø59 mm | ||||
| 131 | F016L91046 | 1.18 | 1.43 | |
| Cover Ø 71 mm | ||||
| 132 | F016L91047 | 1.70 | 2.06 | |
| Deflector Plate | ||||
| 140 | F016L90830 | 15.71 | 19.01 | |
| Cover | ||||
| 160 | F016L90060 | 1.94 | 2.35 | |
| Cover | ||||
| 161 | F016L90061 | 1.94 | 2.35 | |
| Torx Oval-Head Screw M6x50 | ||||
| 163 | 1613490011 | 1.70 | 2.06 | |
| Torx head screw | ||||
| 500 | F016L68124 | 0.83 | 1.00 | |
| Plain Washer | ||||
| 501 | 8716107299 | 0.83 | 1.00 | |
| Collection box | ||||
| 883 | F016105378 | 55.25 | 66.85 | |
| Pin | ||||
| 883/1/10 | F016L91107 | 2.24 | 2.71 | |
| Socket insert | ||||
| 883/1/11 | F016L91108 | 2.24 | 2.71 | |
| Handle | ||||
| 883/1/2 | F016L90040 | 1.18 | 1.43 | |
| Cover | ||||
| 883/1/3 | F016L90557 | 1.70 | 2.06 | |
| Pivot Plate | ||||
| 883/1/4 | F016L91038 | 0.83 | 1.00 | |
| Speed governor | ||||
| 898 | F016105113 | 40.61 | 49.14 | |
